Description

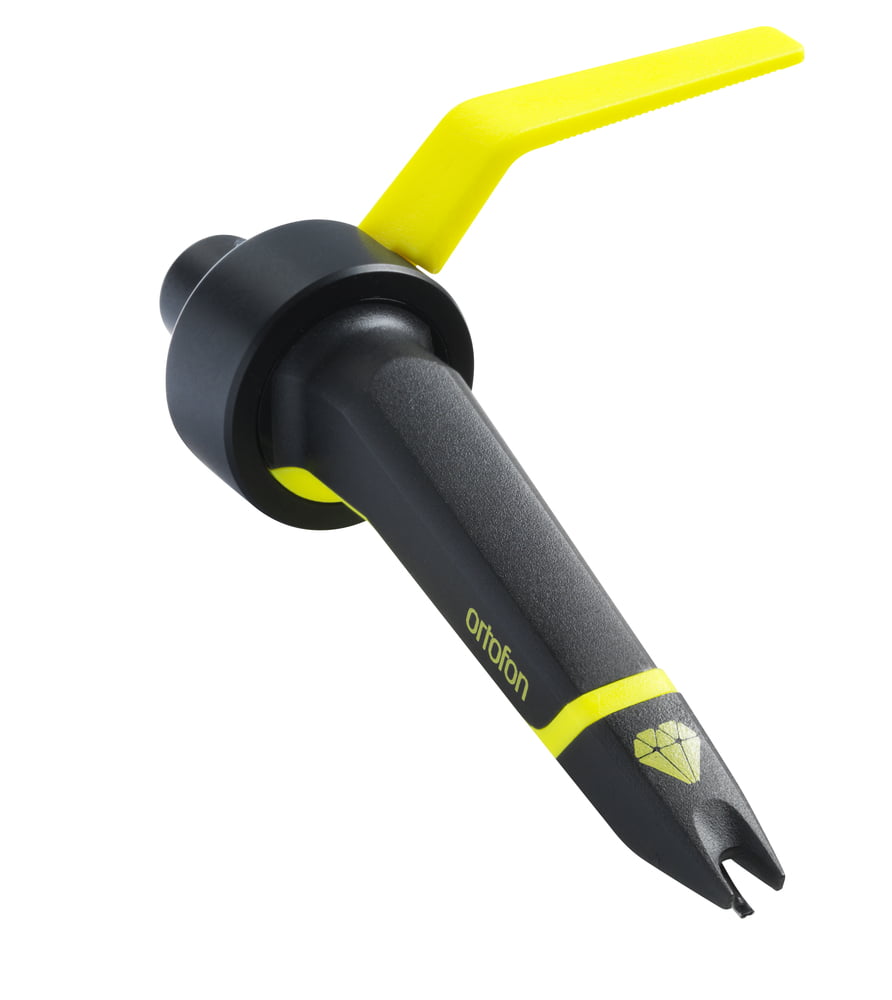

The Club is the only Ortofon DJ cartridge to feature a special elliptical stylus that fits better in the record groove, allowing for more contact with the groove itself. This results in a richer, more detailed sound than can be achieved with a spherical stylus.
The new stylus body design makes it easier to see the groove with a wider stylus-view cut-out. Tactile feedback when mounting the stylus tip to the body gives an added layer of security. The new, textured finger grip gives you a wider area to hold on to and is now replaceable, making the new Concorde even tougher in demanding environments.
The Club is also recommended for DJs looking to digitize their vinyl collection due to its clarity and quality of sound reproduction.
Technical Data
Output Voltage (@ 1kHz, 5cm/sec.): | 8mV |
Channel Balance (@ 1kHz): | 1dB |
Channel Separation (@ 1kHz): | 25dB |
Channel Separation (@ 15kHz): | 15dB |
Frequency Range (@ -3dB): | 20 – 20,000Hz |
Tracking Ability (@ 315Hz)*: | 100μm |
Compliance (Dynamic Lateral): | 14μm / mN |
Stylus Type: | Spherical |
Stylus Tip Radius (R): | 18μm |
Tracking Force Range: | 2.0 – 4.0g (30 – 50mN) |
Recommended Tracking Force: | 3.0g (40mN) |
Cartridge Weight: | 18.5g |
Replacement Stylus Unit: | Club |
* At recommended tracking force
