These characteristics are also ideally suited to the playback of real vinyl records as well allowing for flexibility in your DJ performance.

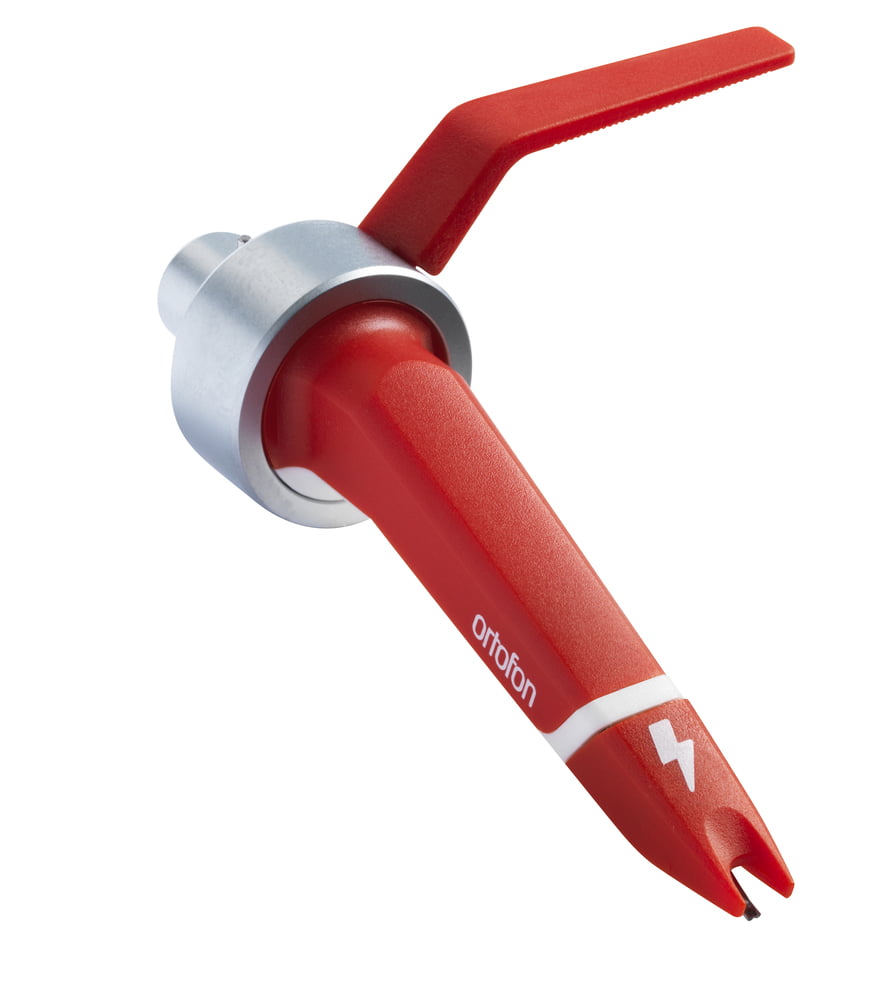

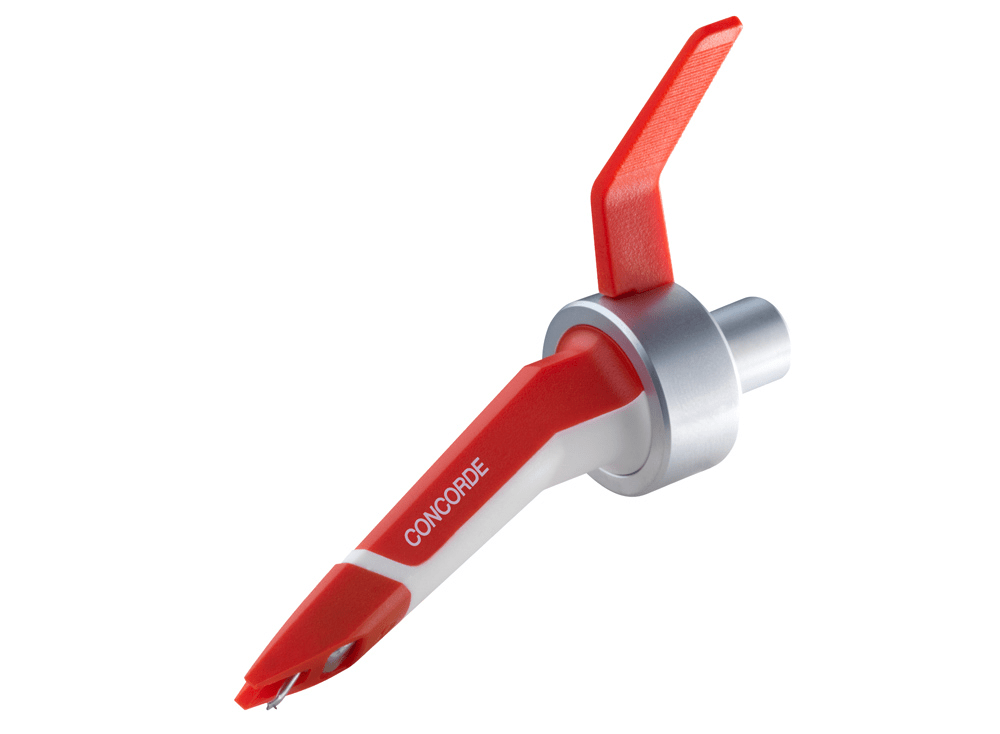

The new stylus body design makes it easier to see the groove with a wider stylus-view cut-out. Tactile feedback when mounting the stylus tip to the body gives an added layer of security. The new, textured finger grip gives you a wider area to hold on to and is now replaceable, making the new Concorde even tougher in demanding environments.
|Output Voltage (@ 1kHz, 5cm/sec.):||10mV|
|Channel Balance (@ 1kHz):||1dB|
|Channel Separation (@ 1kHz):||22dB|
|Channel Separation (@ 15kHz):||15dB|
|Frequency Range (@ -3dB):||20 – 18,000Hz|
|Tracking Ability (@ 315Hz)*:||100μm|
|Compliance (Dynamic Lateral):||14μm / mN|
|Stylus Tip Radius (R):||18μm|
|Tracking Force Range:||3.0 – 5.0g (30 – 50mN)|
|Recommended Tracking Force:||4.0g (40mN)|
|Replacement Stylus Unit:||Digital|
