Description

These characteristics are also ideally suited to the playback of real vinyl records as well allowing for flexibility in your DJ performance.

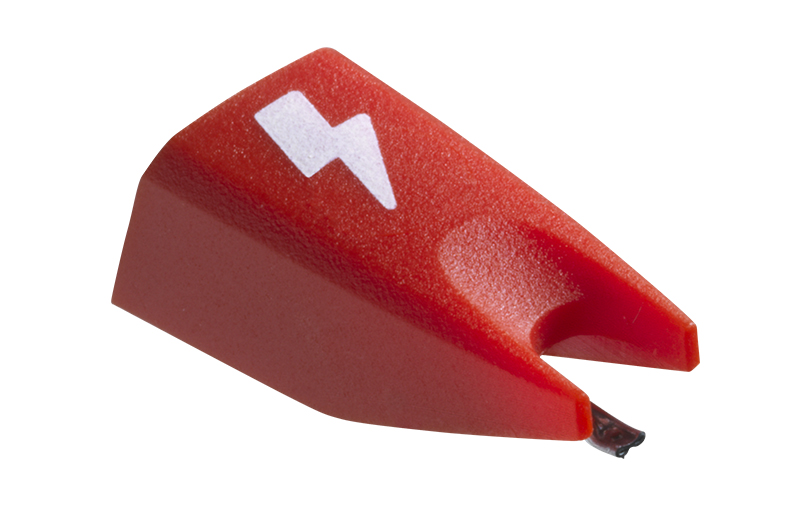

The new stylus body design makes it easier to see the groove with a wider stylus-view cut-out. Tactile feedback when mounting the stylus tip to the body gives an added layer of security. The new, textured finger grip gives you a wider area to hold on to and is now replaceable, making the new Concorde even tougher in demanding environments.

Technical Data

Output Voltage (@ 1kHz, 5cm/sec.): 10mV
Channel Balance (@ 1kHz): 1dB
Channel Separation (@ 1kHz): 22dB
Channel Separation (@ 15kHz): 15dB
Frequency Range (@ -3dB): 20 – 18,000Hz
Tracking Ability (@ 315Hz)*: 100μm
Compliance (Dynamic Lateral): 14μm / mN
Stylus Type: Spherical
Stylus Tip Radius (R): 18μm
Tracking Force Range: 3.0 – 5.0g (30 – 50mN)
Recommended Tracking Force: 4.0g (40mN)
Cartridge Weight: 18.5g
Replacement Stylus Unit: Digital


* At recommended tracking force
