Description
With a massive 10mV output the scratch is excellent at reproducing low-frequency bass-heavy music and high quality. A very slight roll-off at the highest frequencies allow your cuts to be heard clearly without damaging or fatiguing your ears over time.

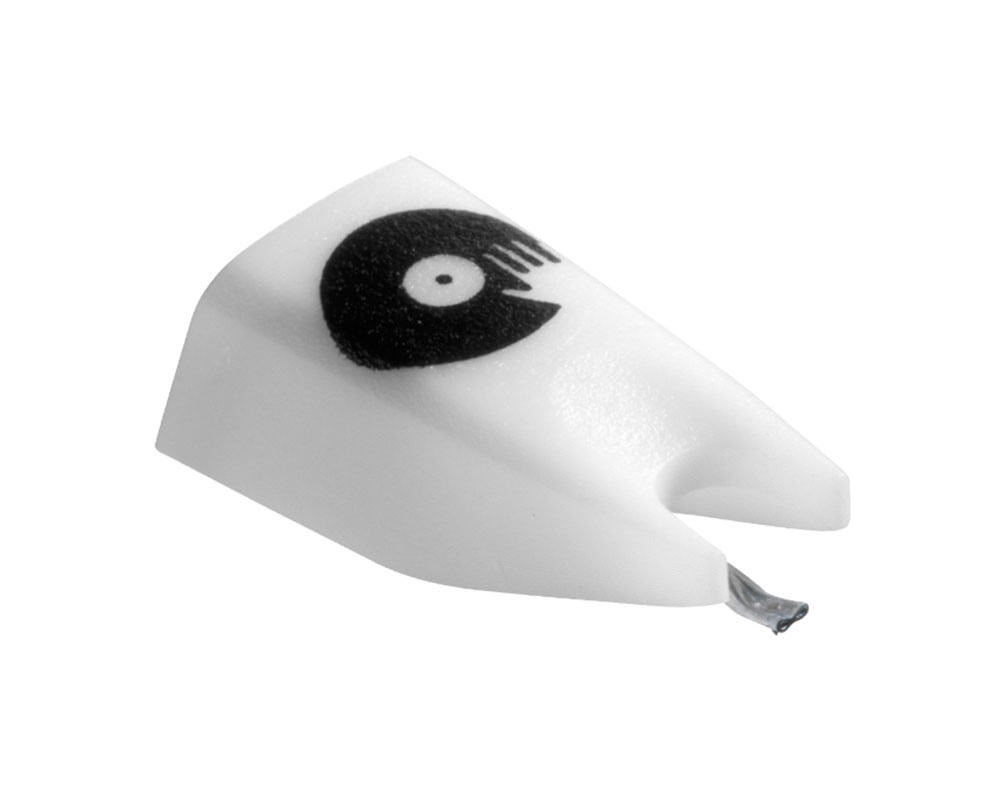

The rigid, spherical stylus is suited to back-cueing and the new design makes it easier to see the groove with a wider stylus-view cut-out. Tactile feedback when mounting the stylus tip to the body gives an added layer of security.
The new, textured finger grip gives you a wider area to hold on to and is now replaceable, making the new Concorde even tougher in demanding environments.
The ultimate scratch cartridge.
Technical Data
Output Voltage (@ 1kHz, 5cm/sec.): | 10mV |
Channel Balance (@ 1kHz): | 1dB |
Channel Separation (@ 1kHz): | 22dB |
Channel Separation (@ 15kHz): | 15dB |
Frequency Range (@ -3dB): | 20 – 18,000Hz |
Tracking Ability (@ 315Hz)*: | 120μm |
Compliance (Dynamic Lateral): | 14μm / mN |
Stylus Type: | Spherical |
Stylus Tip Radius (R): | 18μm |
Tracking Force Range: | 3.0 – 5.0g (30 – 50mN) |
Recommended Tracking Force: | 4.0g (40mN) |
Cartridge Weight: | 18.5g |
Replacement Stylus Unit: | Scratch |
* At recommended tracking force
