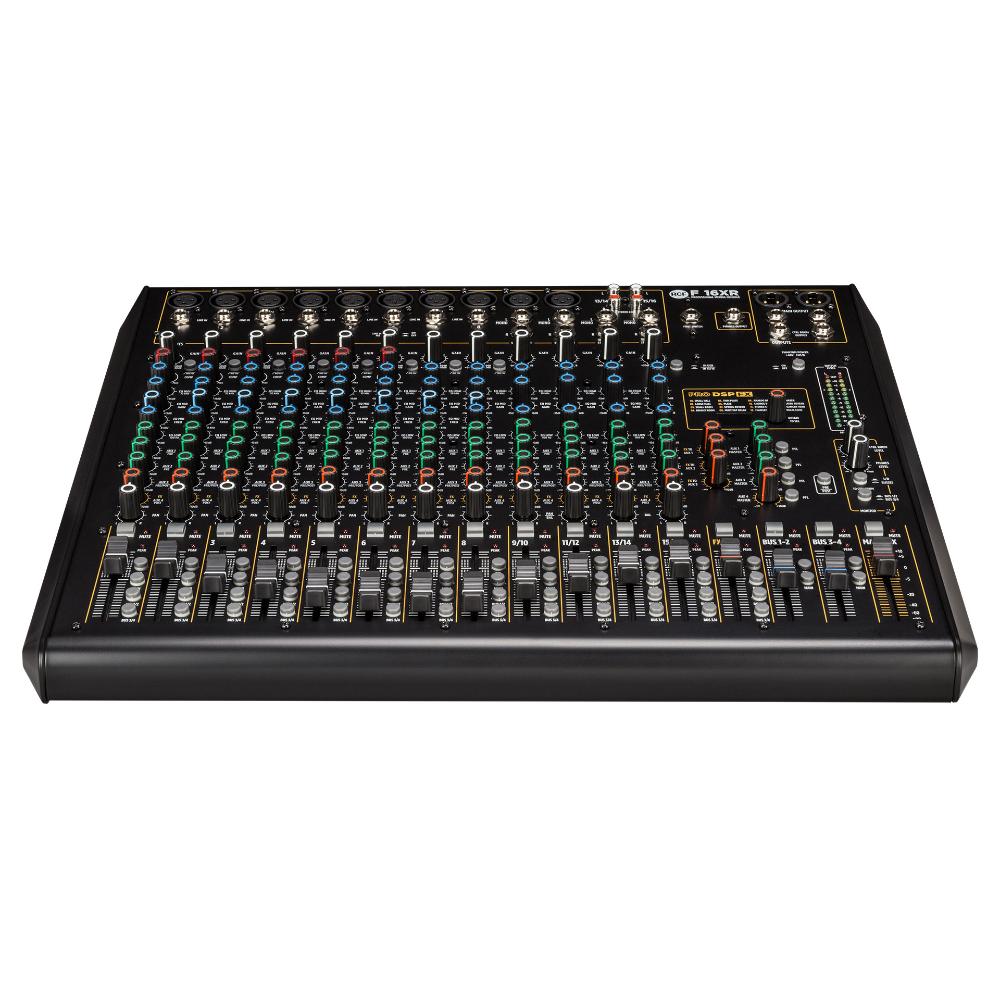

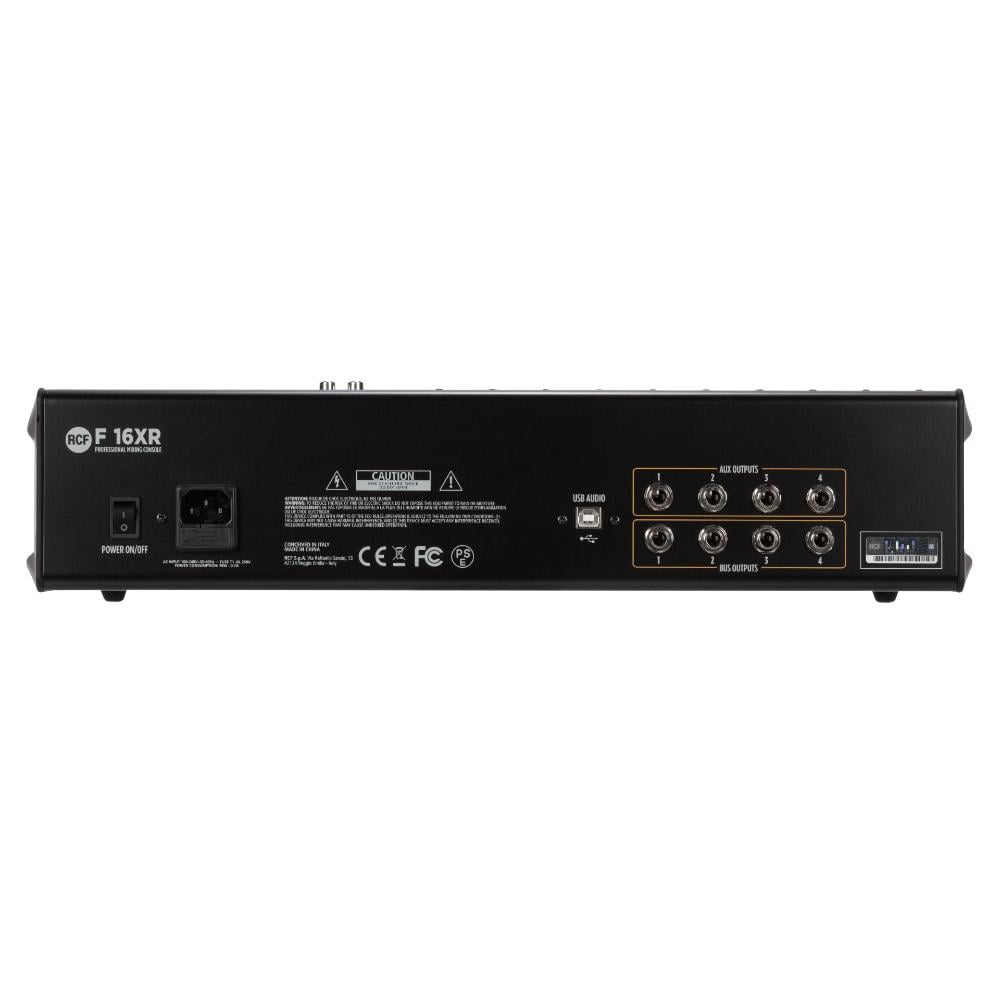

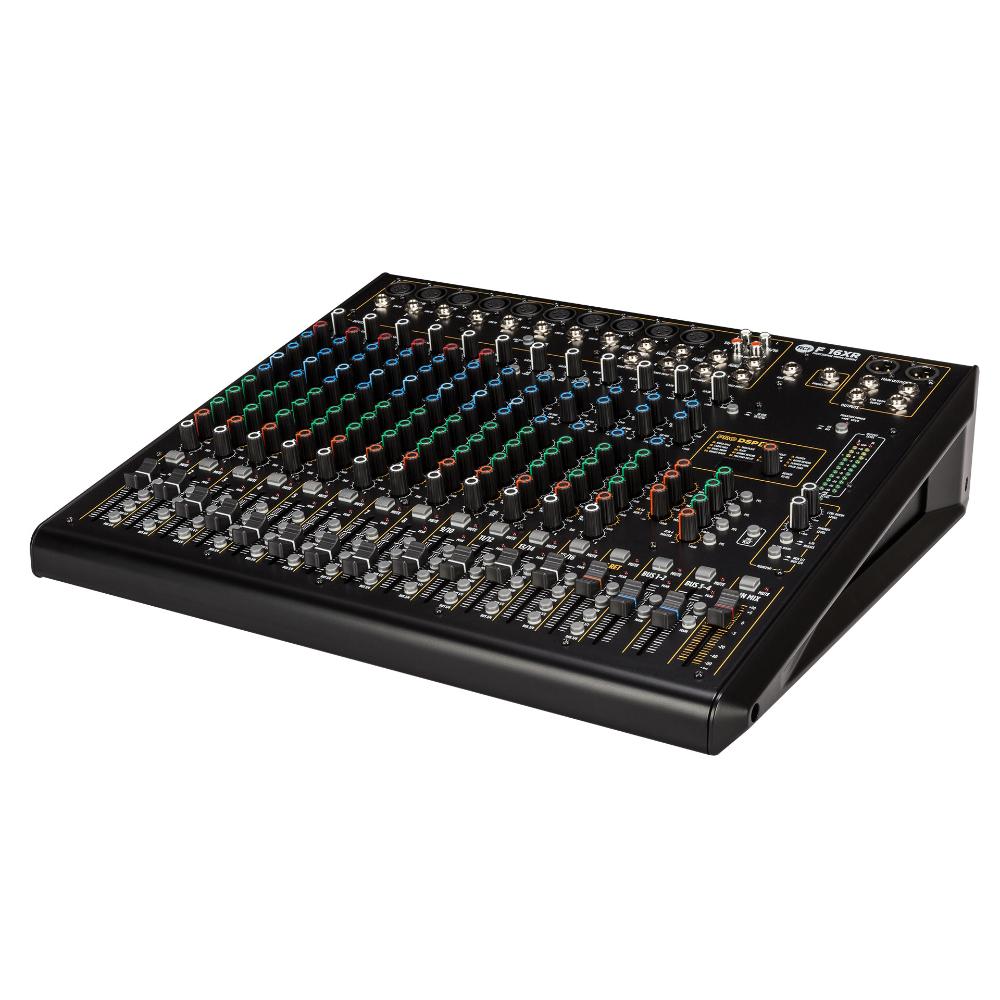

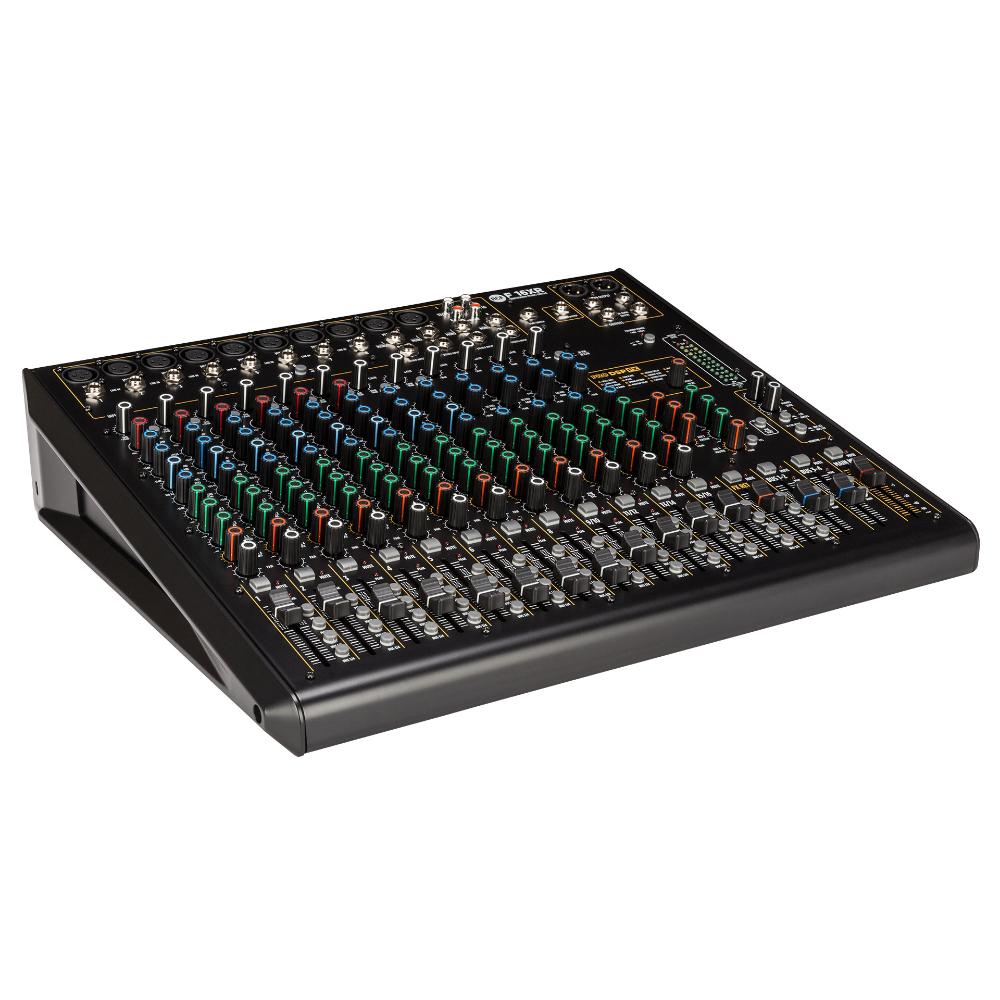

RCF F16XR 16-CHANNEL MIXING CONSOLE WITH MULTI-FX & RECORDING

£449.00

Available on back-order

AWAITING MORE STOCK

Available on back-order

Categories: ,

Description

F 16XR

16-CHANNEL MIXING CONSOLE WITH MULTI-FX & RECORDING

  • 10 Mic preamp inputs, 4 mono line inputs
  • 4 Stereo line inputs
  • PRO DSP FX onboard with 16 presets
  • Stereo recording and playback via USB port

FEATURES

  • 10 Mic preamp inputs, 4 mono line inputs
  • 4 Stereo line inputs
  • PRO DSP FX onboard with 16 presets
  • Stereo recording and playback via USB port
  • 6 single control compressors
  • Balanced main output +28 dB (Stereo XLR + TRS)
  • Two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post)
  • 60 mm faders
  • Internal universal power supply
  • Designed and engineered in Italy

RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in five formats from 6 to 24 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F-10XR, F-12XR, F-16XR and F-24XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.

SPECIFICATIONS

ELECTRONIC SPECIFICATIONS
Frequency Response: 20 Hz ÷ 20 kHz
THD+N, 20dB gain, 0dBu out
<0,02% A-Weighted
INPUTS
Channels: 16
Mic: 10
Gain Range: 0 dB ÷ -50 dB
Input Noise Level: -124 dBu A-Weighted
Mic Inputs Impedance: 14 kohm
Low Cut: 80 Hz
Phantom Power +48V: Yes
Mono Line: 8
Gain Selection: 20 dB ÷ -30 dB
Line Input Impedance: 21 kohm
HI-Z Line Inputs: 1
HI-Z Line Inputs Impedance (Mohm): 1 Mohm
Stereo Line: 4
Gain Selection: 20 dB ÷ -30 dB
Stereo Line Input Impedance (kOhm) 14 kohm
Input connectors: XLR, Jack, RCA
OUTPUTS
Main MIX: 1
Control Room: Yes
FX Send: 1
AUX Send: 3
AUX Output: 4
Group Out: 4
Phones: 1
Output connectors: XLR, Jack
OUTPUTS SPECIFICATIONS
Main Out Level: 28 dBu
Aux Out Level: 28 dBu
Group Out Level: 28 dBu
Phones Out impedance (ohm): 150 ohm
Phones Out Level: 10 dBm
COMPRESSORS
RCF Compressors: n°6 Single Control Compressors on Channels 1 to 6
EQ
Input Channels EQ: 1 Semi Parametric / 2 Shelving
Description:
High: +/-15 dB @ 10 kHz Shelving
Mid: +/-15 dB @ Freq. sel. from 100Hz to 8kHz – Bell
Low: +/-15 dB @ 100 Hz Shelving
AUXILIARY SENDS
AUX: 2 PRE / 1 PRE/POST
FX POST: 1
INTERNAL EFFECTS
Send Effects: 1
USB AUDIO
USB Audio Interface: Yes
Type: B
Play trk: 2
Rec trk: 2
Supported Sample Rate: 44.1, 48.0 kHz
OTHER FEATURES
Footswitch: Yes
ELECTRICAL SPECIFICATIONS
Power supply: Internal
Voltage requirements: 100 V – 240 V
Power consumption (MAX): 30 W
PHYSICAL SPECIFICATIONS
Cabinet/Case Material: Metal
Color: Black
SIZE
Height: 107 mm / 4.21 inches
Width: 479 mm / 18.86 inches
Depth: 406 mm / 15.98 inches
Weight: 6.4 kg / 14.11 lbs
