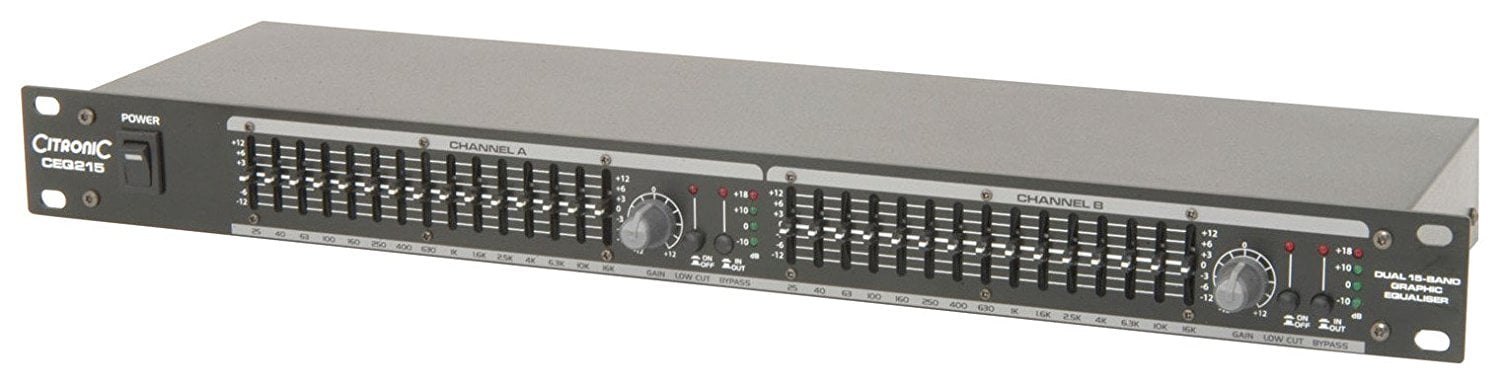

Description

Up to 12dB of cut or boost for frequencies ranging from 25Hz to 16kHz for accurate audio spectrum control.

  • 2 x 15-band 2/3 octave ISO spacing
  • RF filtered servo-balanced inputs
  • Constant Q each band
  • Bypass switch for EQ comparison
  • Low-cut switch each channel
  • Gain control each channel
  • LED VU meters
  • 19″ rackmount 1U
Power supply 115/230Vac, 50/60Hz (IEC)
Frequency response 20Hz-20kHz
Input impedance : balanced 40k Ohms
Input impedance : unbalanced 20k Ohms
Output impedance : bal/unbal 330 Ohms
Channel separation >50dB
Signal to noise ratio >102dB
THD 0.005%
Dimensions 482 x 44 x 138mm
Weight 2.0kg
