RCF SUB15-AX PROFESSIONAL ACTIVE 15″ SUBWOOFER
£1,359.00
Available on back-order
Available on back-order
Description
FEATURES
-
- 2200 Watt Class-D Amplifier
- 133 dB MAX SPL
- 15” Woofer, bass reflex housing
- Digital Crossover w/ Presets
- Multi-ply hardwood polyurea-coated
- LiveRemote App
- Dual XLR/TRS combo Input + Link, Dual XLR Xover Out
- Bass Motion Control excursion management
- Powercon True1 Top Sealed AC Connector

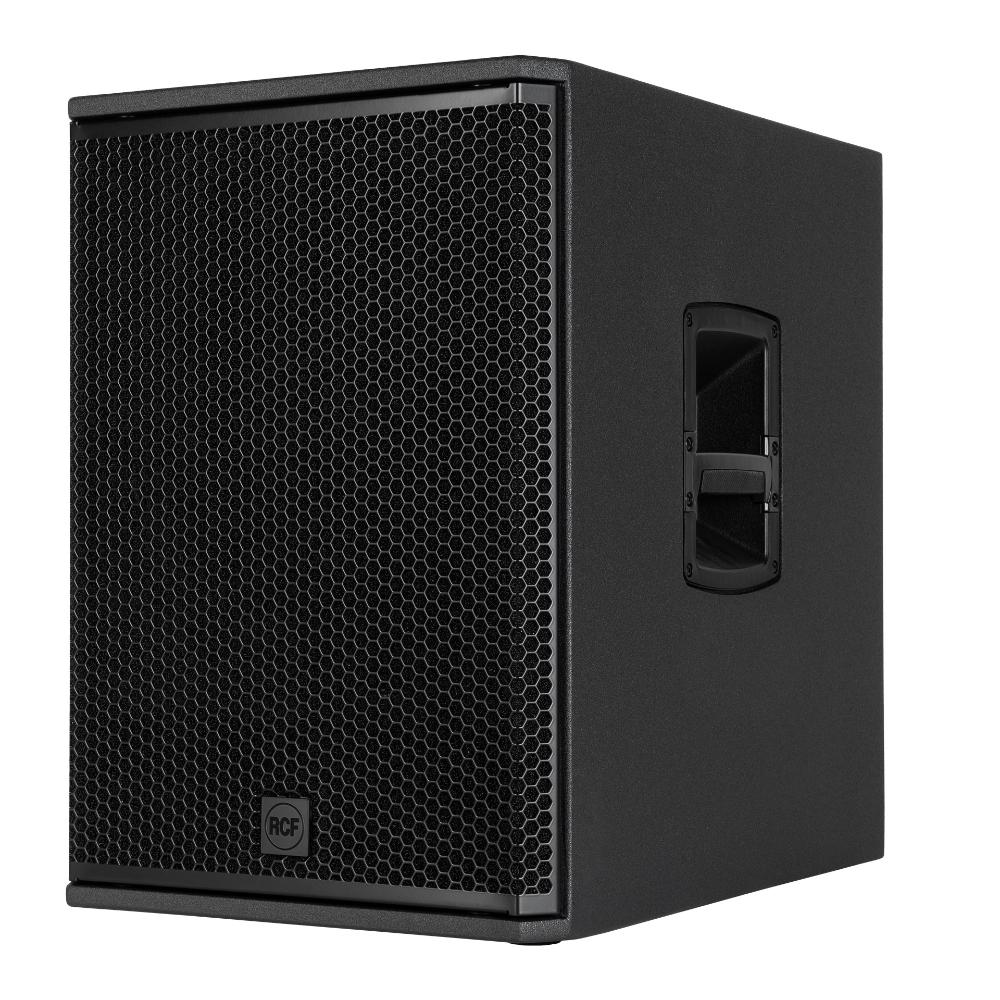

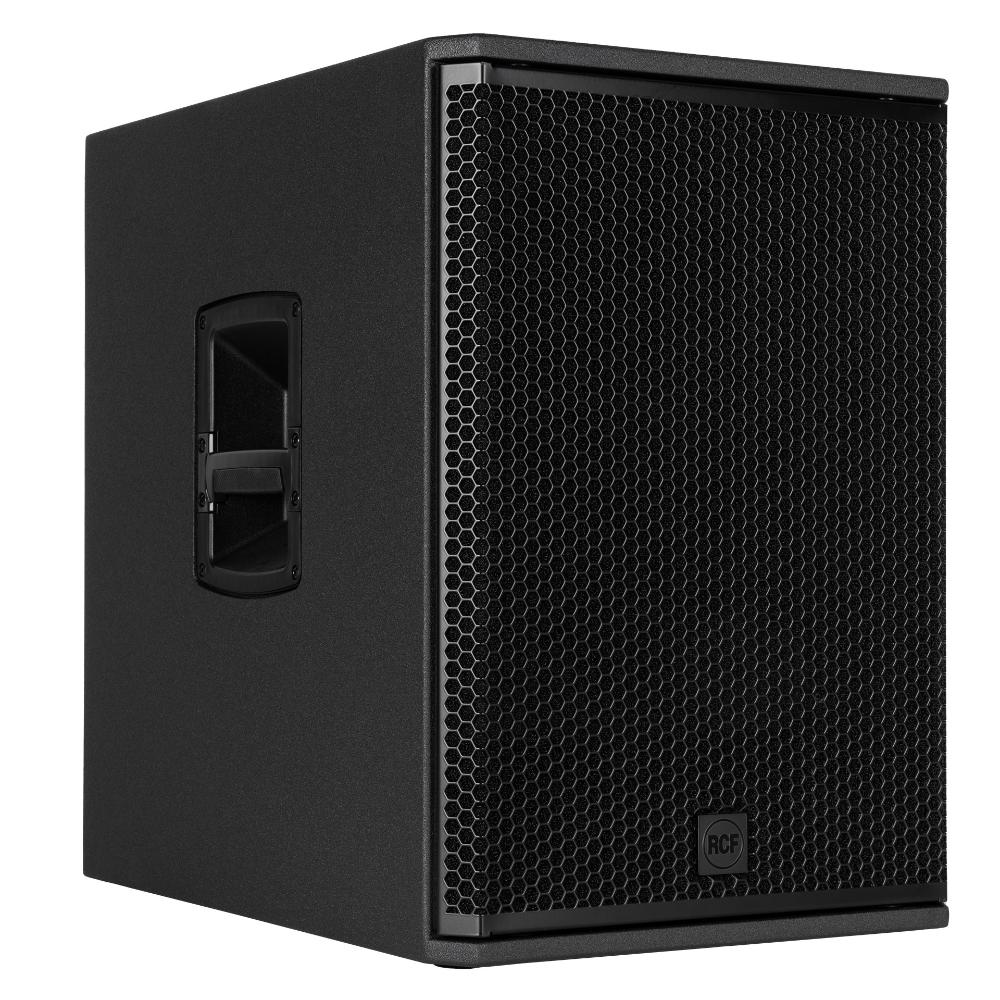

The SUB 15-AX is a portable 15″ high-power active subwoofer for live sound applications with fully featured processing, a color touch panel, and remote control via Bluetooth®. The combination of a latest-generation transducer with a powerful Class-D amplifier delivers sound pressure levels up to 133 dB with exceptional clarity and headroom. SUB AX subwoofers are designed specifically for small to mid-sized venues and ideal for portable applications. SUB 15-AX is the ideal complement for 10″ or 12″ woofer-size loudspeakers; it centralizes speaker management inside the subwoofer, providing dual crossovers, 8-band EQs, routing, delays, cardioid configurations, and recallable crossover presets. The polyurea-coated all-wood cabinet features a sealed Powercon True1 Top connector.
Advanced Subwoofer with Crossover Presets for RCF Speakers
The key to optimizing your sound system is the precise adjustment of your subwoofer’s time alignment. This not only elevates sound quality but also enhances bass response, giving your audience both the beat they can hear and the vibe they can feel.
With internal factory-tuned crossover presets for RCF speakers, your sound system is show-ready in a few easy steps. Simply connect your satellite speakers to the SUB AX, select the crossover preset from the user interface, and you are ready to go. FiRPHASE linear phase is extended to match the subwoofer phase down to the lowest frequencies.

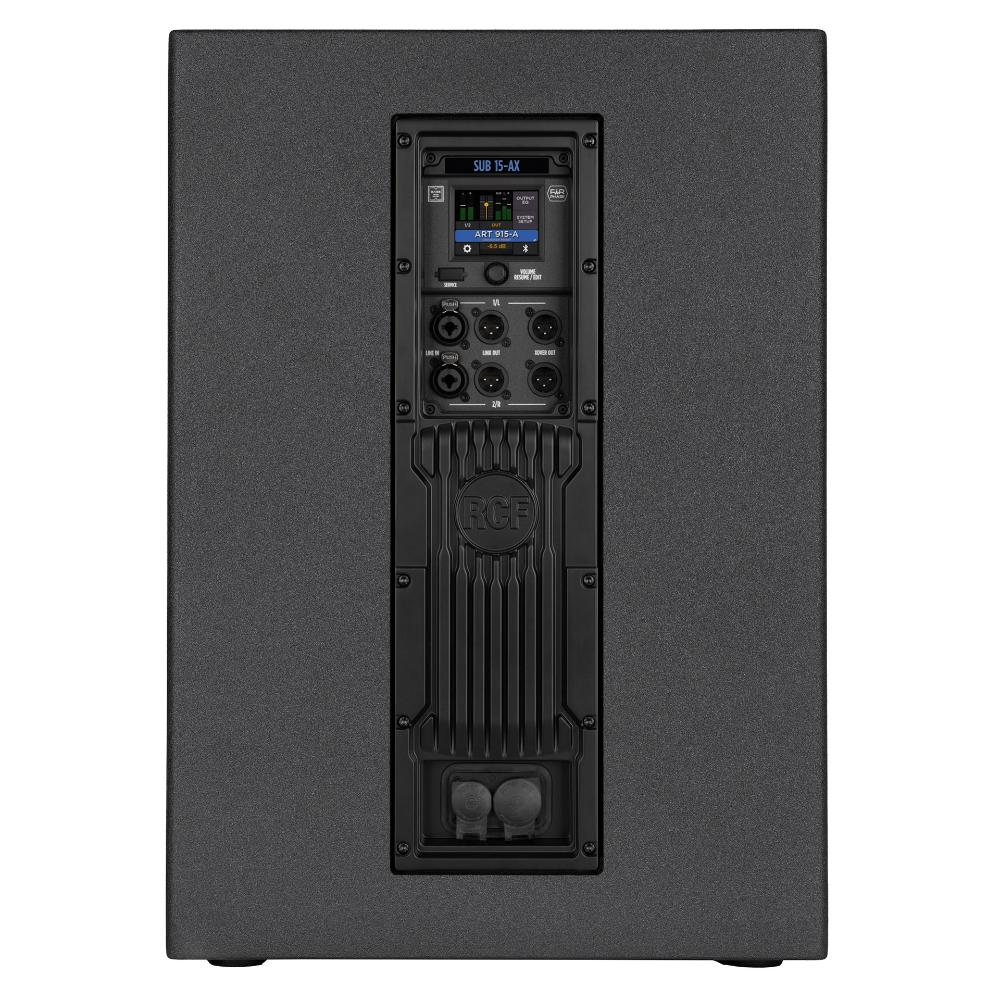

Large Touch Display
2.4 inch Colour Touch Panel
Rotary Push Encoder
Swipe Gestures fo Fast navigation
Advanced DSP for your System
Eight Recallable Snapshots
Fullrange Parametric 8 band EQ
Up to 45 meters delay
Precision Tuning
Top/Sub Alignment (Meters?feet/ms)
Cardioid Function and L/R Balance for 2.1 systems
LiveRemote App
Whether you’re a musician, DJ, or pro sound engineer, the RCF LiveRemote App, the same app that is used with the ART9AX, is now available with the SUB AX models. On the subs, crossover preset section, system EQ and delay adjustments and crossover individual settings are quickly accessible. When two subwoofer models are paired, they can be set up for 2.2 operation. Available for Android and iOS phones and tablets.
Bass Motion Control
When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.
The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.
Specifications
Acoustical Specifications
Frequency response : 35Hz – 120Hz
max SPL @ 1m 133 dB
Transducers
Woofer : 1 x 15″, 3.0″ VC
Input / Output Section
Input signal : bal/unbal
Input connectors : Combo XLR/Jack
Output connectors : XLR
Input sensitivity : -2 dBu/ +4 dBu
Processor Section
Protections : Thermal
Limiter : Soft Limiter
Controls : Encoder for Volume control and data entry. Touch Screen for parameter management and monitor.
Power Section
Total Power 2200 W Peak 1100 W RMS
Cooling : Convection
Connections
Powercon : TRUE1 TOP IN/OUT
Standard compliance
Safety agency : CE compliant
Physical specifications
Cabinet/Case Material : Plywood

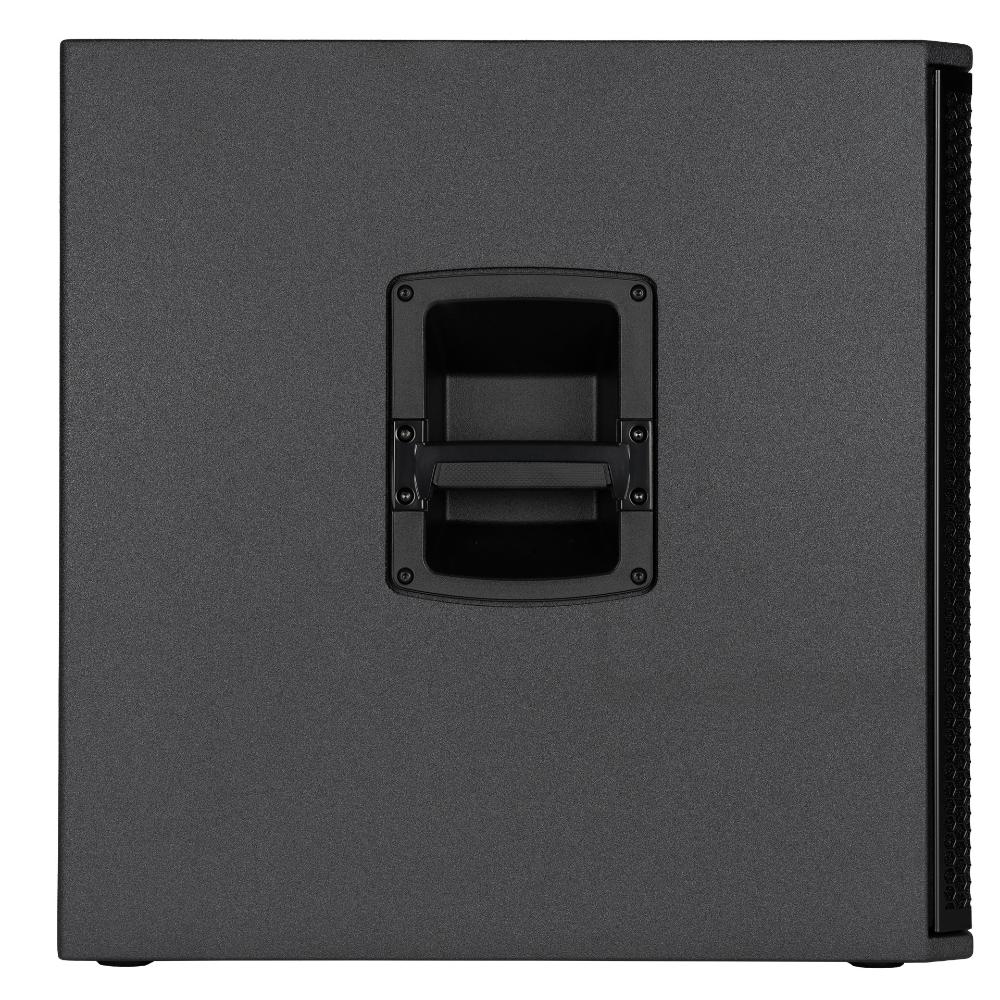

Handles : 1 handle per side
Pole mount/Cap : M20 thread

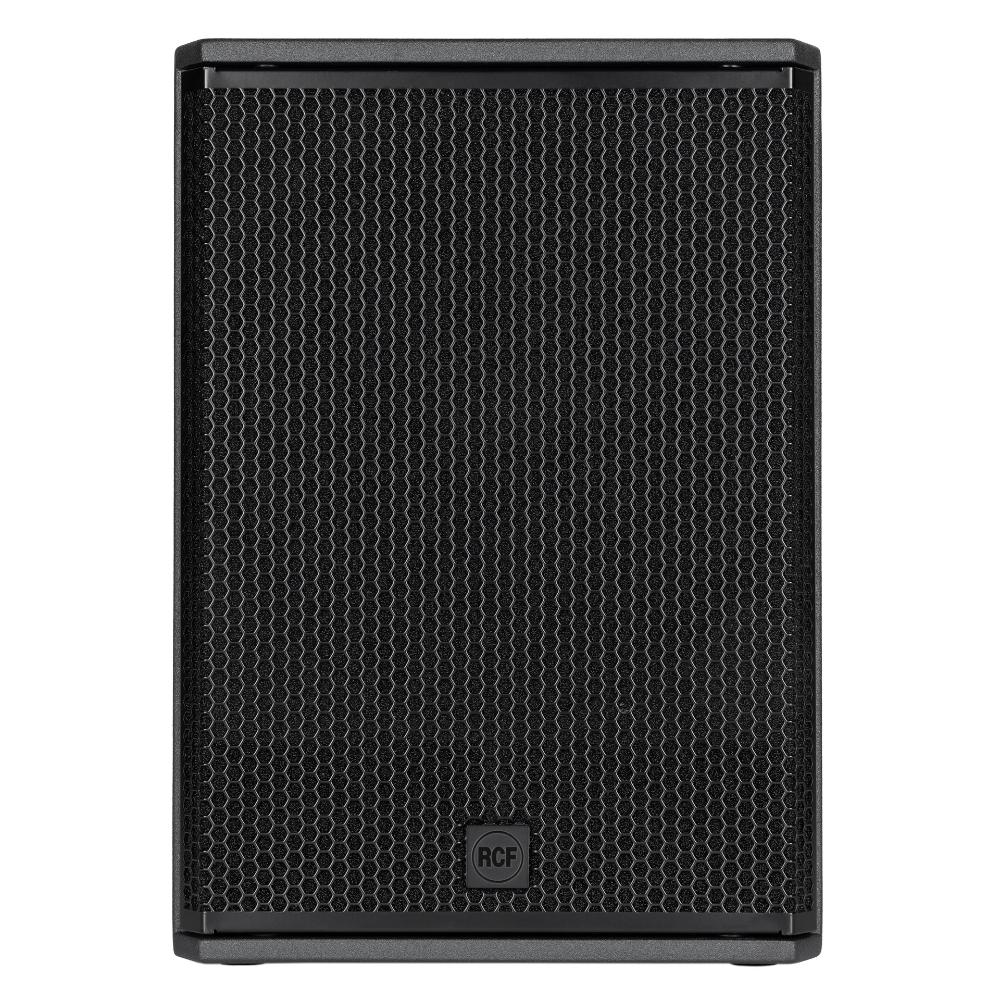

Grille : Steel
Color : Black, White
Size / Weight
Height : 590 mm / 23.23 inches
Width : 420 mm / 16.54 inches
Depth : 590 mm / 23.23 inches
Weight : 31.4 kg / 69.23 lbs
Shipping information
Package Height : 640 mm / 25.2 inches
Package Width : 650 mm / 25.59 inches
Package Depth : 480 mm / 18.9 inches
Package Weight : 36.5 kg / 80.47 lbs
