Description

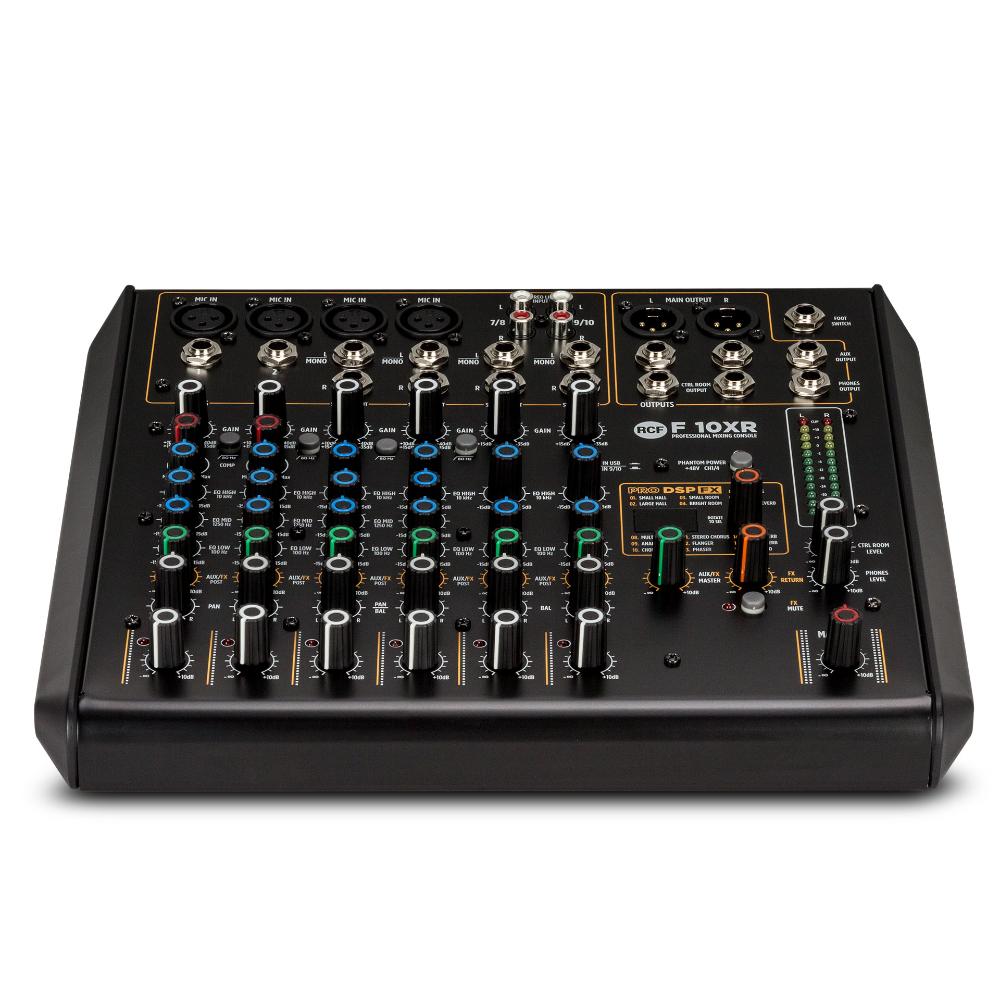

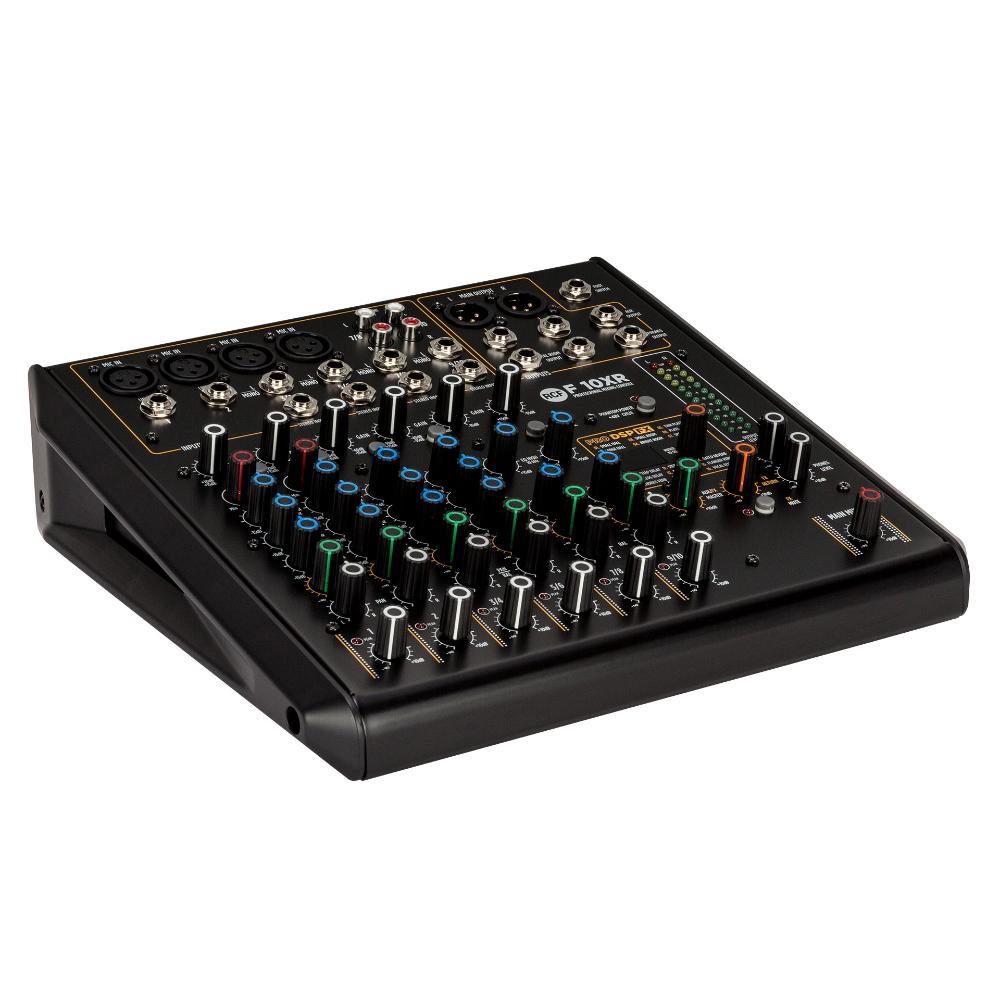

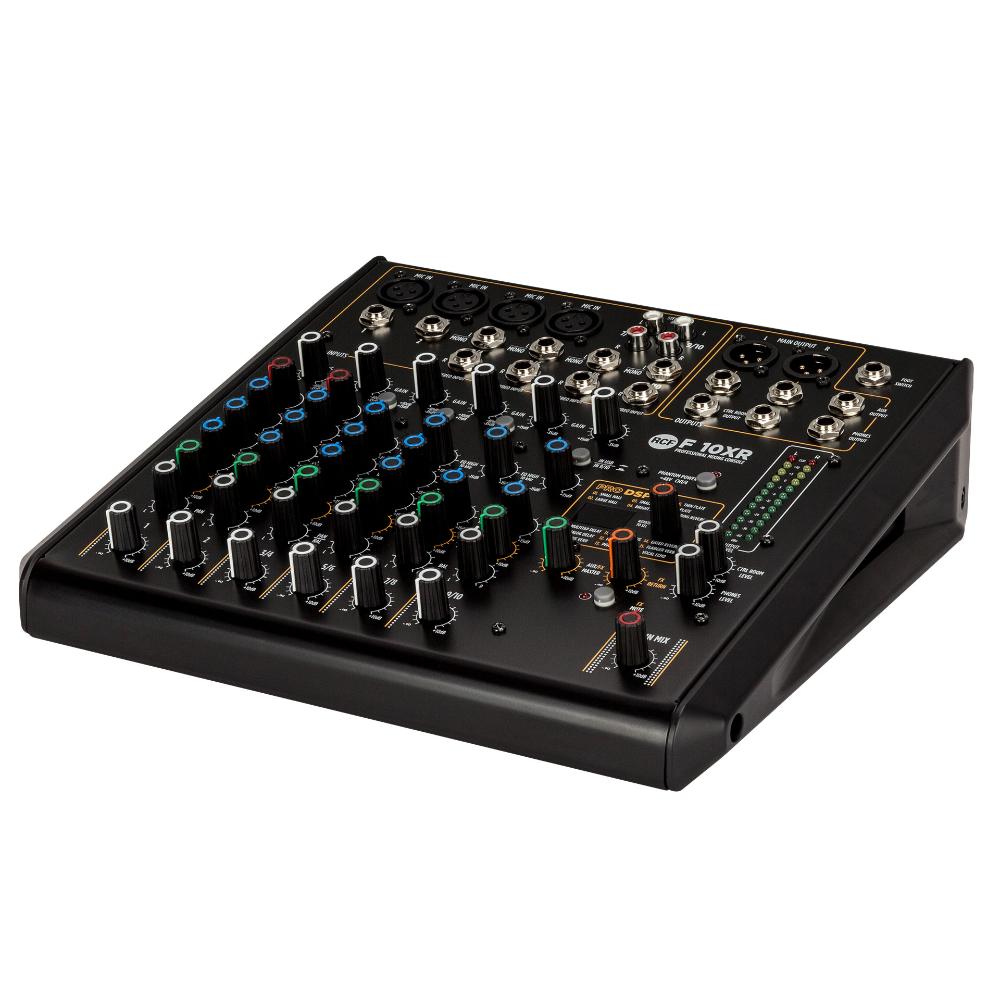

10-channel mixing console with multi-FX & Recording

  • Sturdy Metal Chassis
  • PRO DSP FX onboard with 16 presets
  • Stereo Recording and Playback via USB port
  • Balanced main output audio path from input to output

FEATURES

  • Sturdy Metal Chassis
  • PRO DSP FX onboard with 16 presets
  • Stereo Recording and Playback via USB port
  • Balanced main output audio path from input to output
  • 2 single control compressors
  • Mono channels provided with 3-band EQ. 2-band EQ on stereo channels.
  • Robust, compact and attractive design.
  • Designed and Engineered in Italy
  • External Universal Power Supply

RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in five formats from 6 to 24 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F-10XR, F-12XR, F-16XR and F-24XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.

SPECIFICATIONS

ELECTRONIC SPECIFICATIONS
Frequency Response:
20 Hz ÷ 20 kHz
THD+N, 20dB gain, 0dBu out
<0,02% A-Weighted
INPUTS
Channels: 10
Mic: 4
Gain Range: 0 dB ÷ -50 dB
Input Noise Level: -124 dBu A-Weighted
Mic Inputs Impedance: 14 kohm
Low Cut: 80 Hz
Phantom Power +48V: Yes
Mono Line: 2
Gain Selection: 20 dB ÷ -30 dB
Line Input Impedance: 21 kohm
Stereo Line: 4
Gain Selection: 20 dB ÷ -30 dB
Stereo Line Input Impedance (kOhm) 15 kohm
Input connectors: XLR, Jack, RCA
OUTPUTS
MIX: 1
Control Room: Yes
FX Send: 1
AUX Output: 1
Phones: 1
Output connectors: XLR, Jack
OUTPUTS SPECIFICATIONS
Main Out Level: 28 dBu
Aux Out Level: 28 dBu
Phones Out impedance (ohm): 150 ohm
COMPRESSORS
RCF Compressors: n° 2 Single Control compressors on channels 1&2
EQ
Input Channels EQ: 2 Shelving / 1 Generic
Description:
High:+/-15 dB @ 10 kHz Shelving
Mid:+/-15 dB @ 1,250 kHz Bell
Low:+/-15 dB @ 100 Hz Shelving
AUXILIARY SENDS
FX POST: 1
INTERNAL EFFECTS
Send Effects: 1

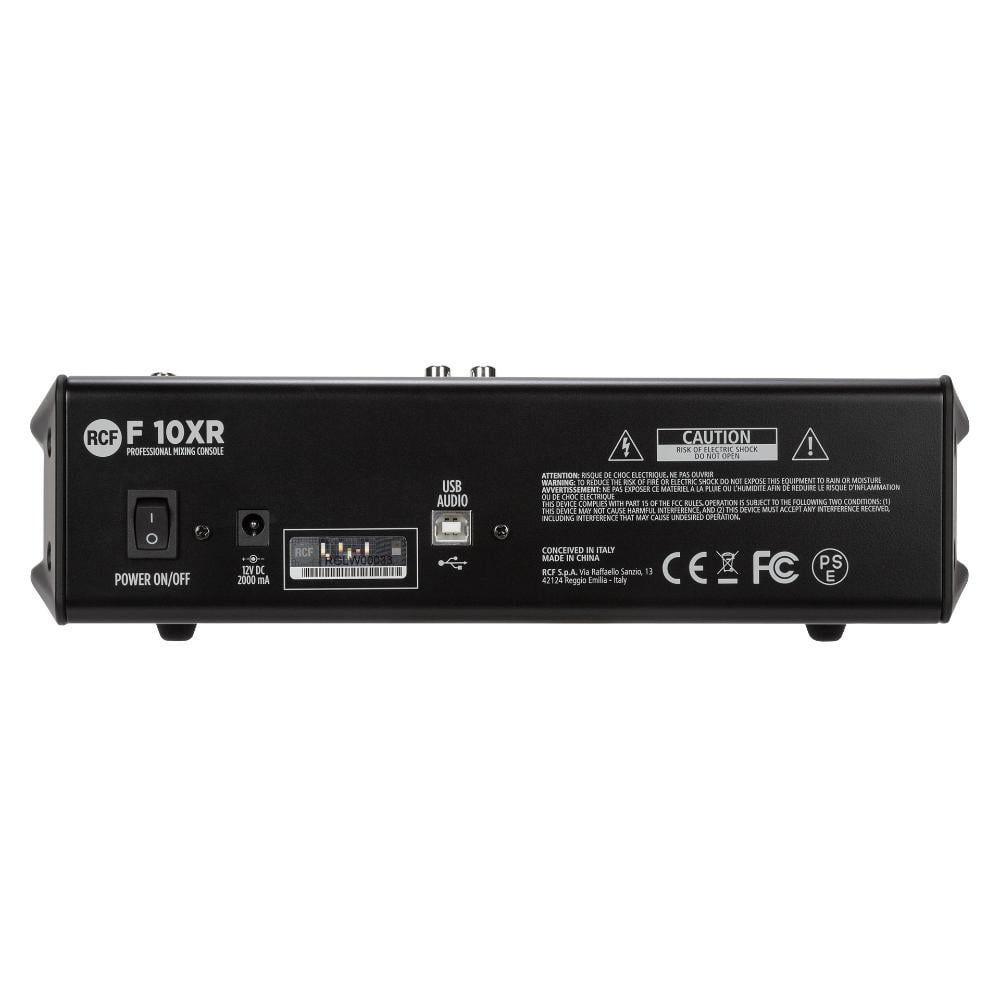

USB AUDIO
USB Audio Interface: Yes
Type: B
Play trk: 2
Rec trk: 2
Supported Sample Rate: 44.1, 48.0 kHz
OTHER FEATURES
Footswitch: Yes
ELECTRICAL SPECIFICATIONS
Power supply: External
Voltage requirements: 100 V – 240 V
Power consumption (MAX): 18 W
PHYSICAL SPECIFICATIONS

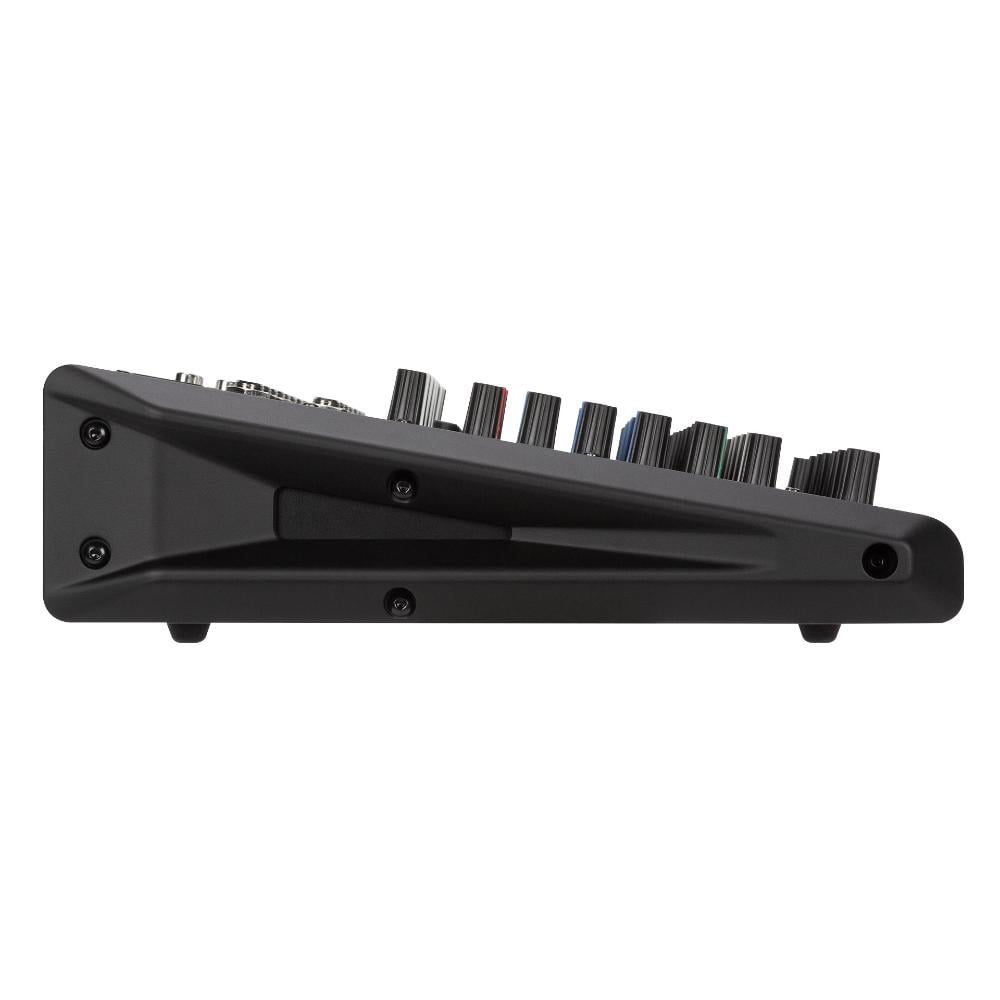

Cabinet/Case Material: Metal
Color: Black
SIZE
Height: 82 mm / 3.23 inches
Width: 294 mm / 11.57 inches
Depth: 275 mm / 10.83 inches
Weight: 2.8 kg / 6.17 lbs
