ACTIVE THREE-WAY PORTABLE COLUMN SPEAKER
- 130 dB Max SPL
- 2100 W Class-D Amplifier – Built-In DSP
- 1.75” Neo Compression Driver – 120° X 40° True Resistive Waveguide
- 12” High-Power Woofer
BLACK IN STOCK NOW!

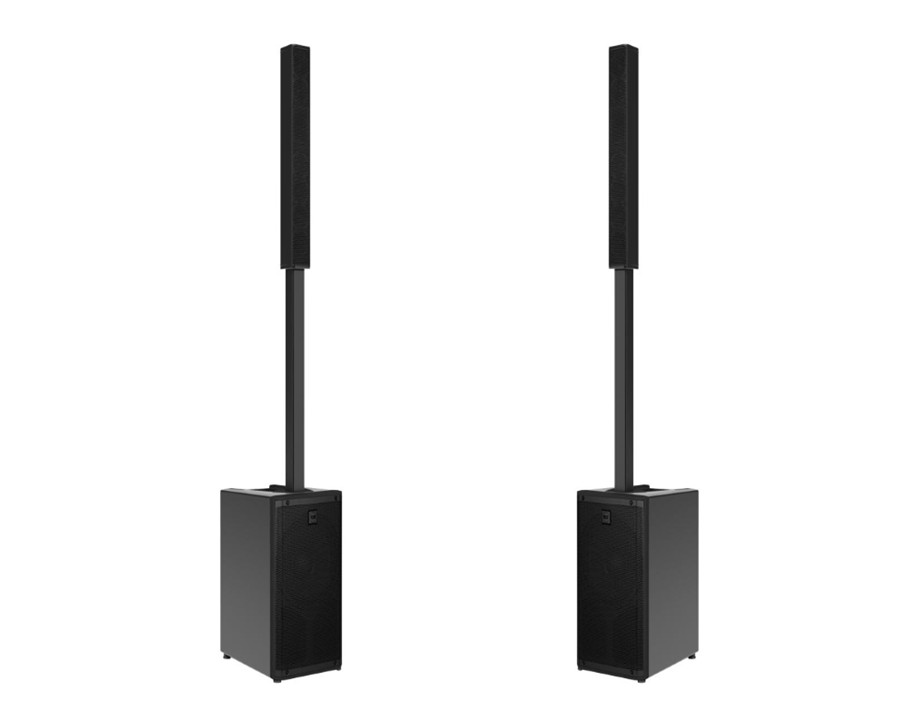

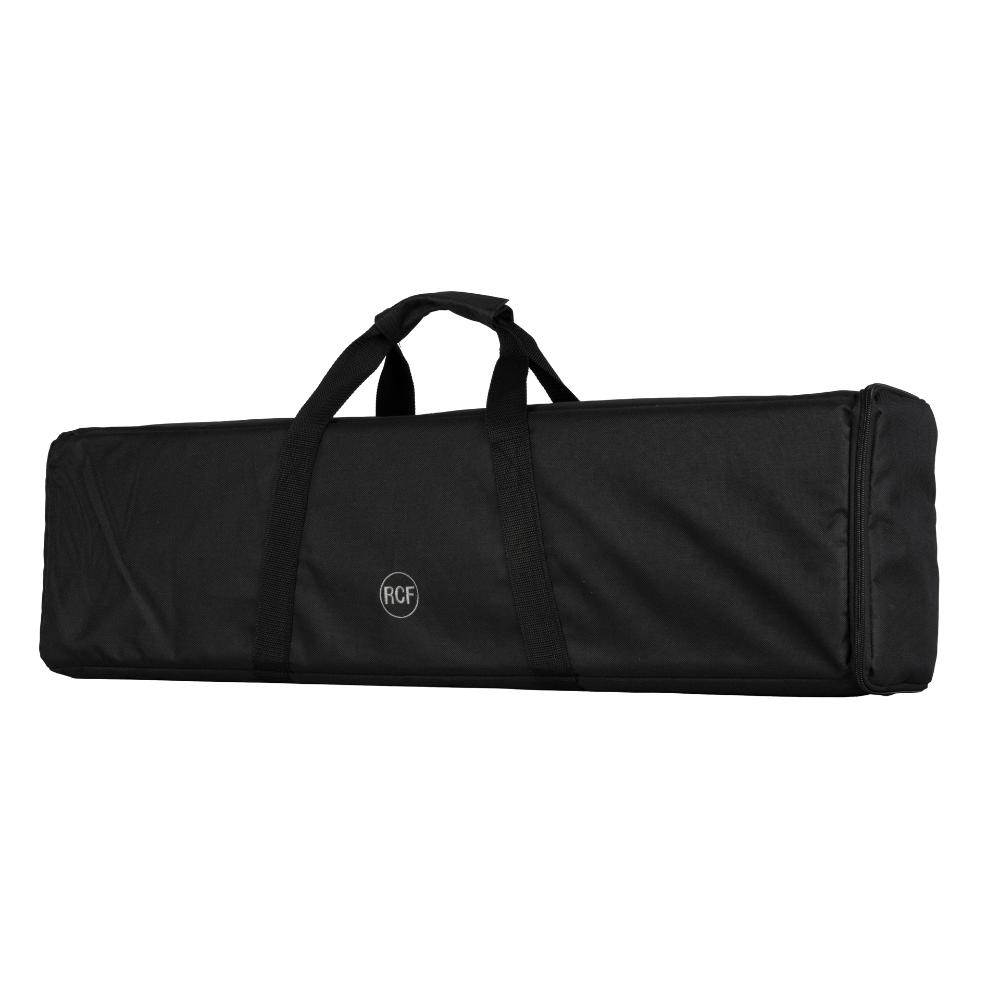

RCF EVOX J9 BUNDLE PAIR WITH COVERS
£2,449.00
In stock
In stock
Description
ELEVATE YOUR SOUND

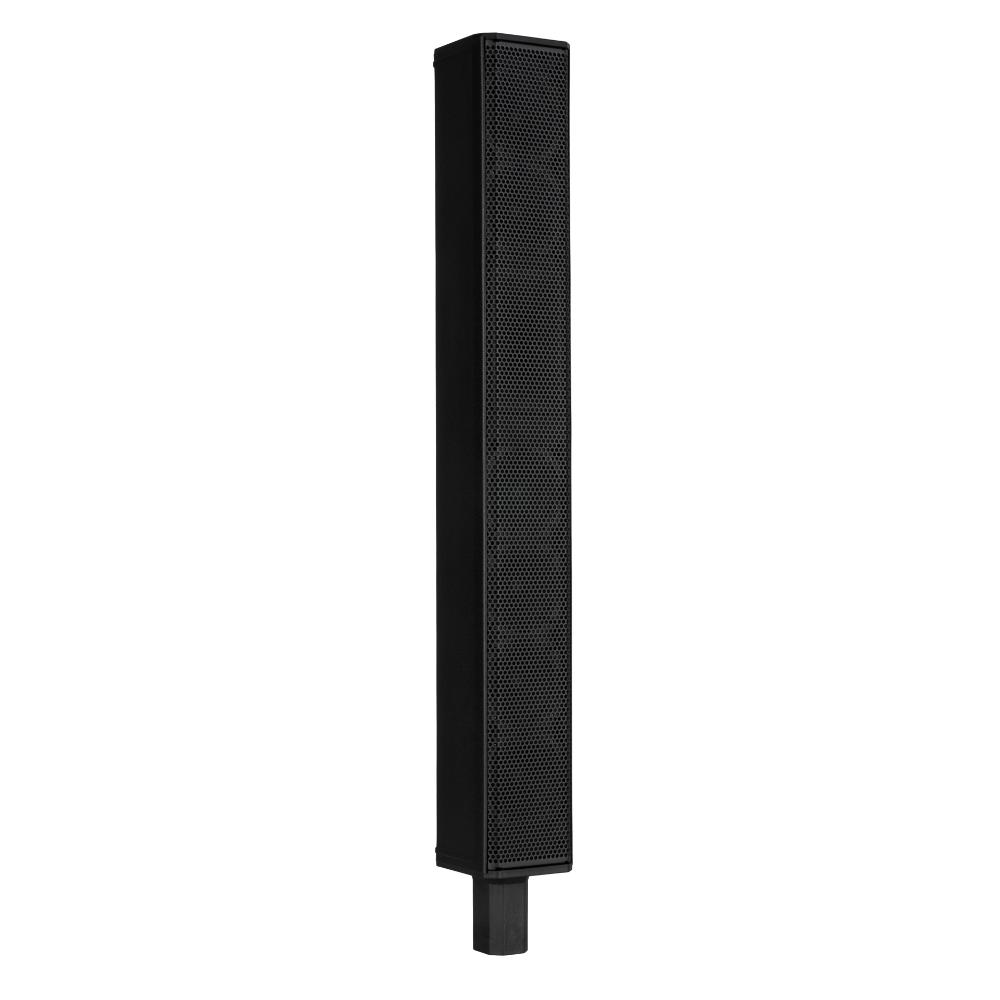

EVOX J9 is an active, three-way portable column system designed for maximum clarity and power in a compact format. With a streamlined aesthetic, the premium composite design delivers unparalleled acoustic fidelity, raw power, and ease of deployment. EVOX J9 is the perfect fusion of Italian engineering and sophisticated design, ready to elevate any setting.
2100 W
Fast Transients. Zero Compromise.
Powered by a 2100W onboard Class-D amplifier, EVOX J9 delivers an impressive 130 dB Max SPL output. Three equalization presets are available: Live/Linear for perfectly flat, neutral output; Club for extended lows and crisp highs; and Voice for optimized intelligibility.

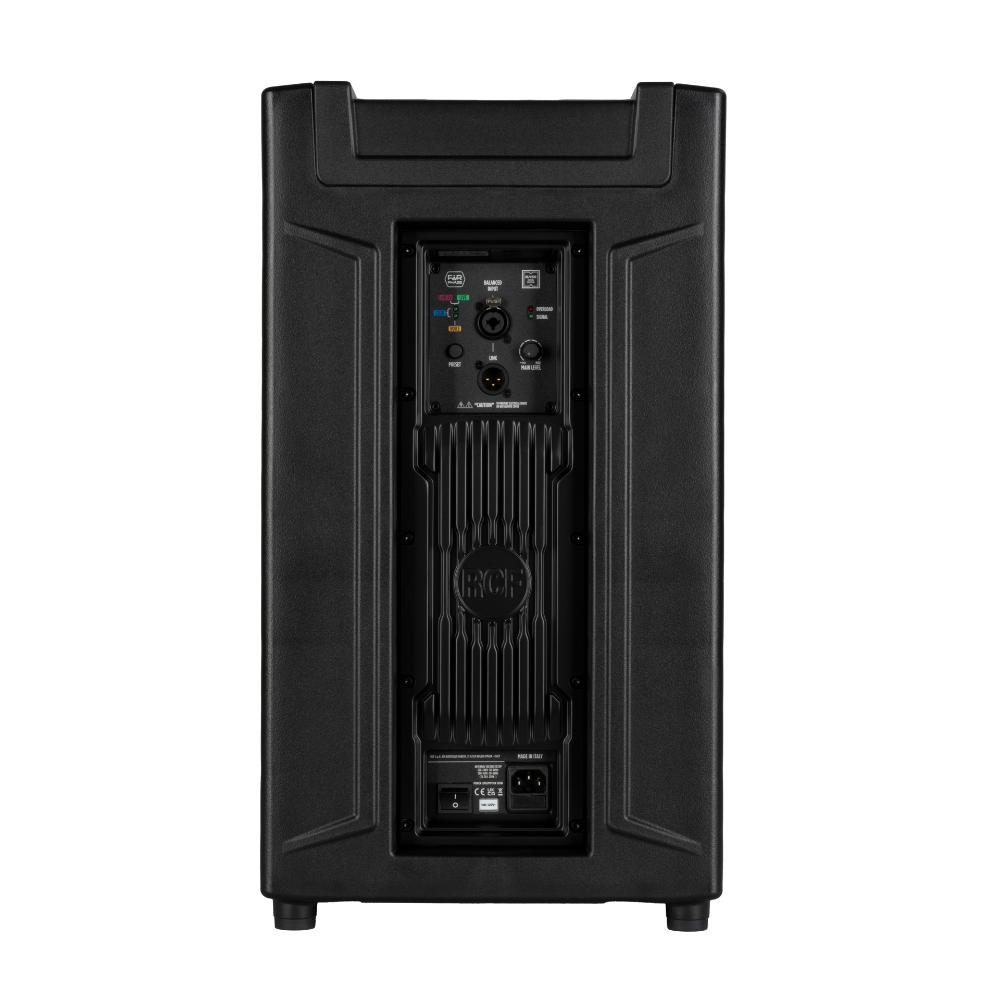

Highly energy-efficient, the J9 requires no cooling fan. The amplifier is mounted on a solid aluminum heat exchanger at the rear of the unit and has no moving parts. Mechanically coupled to the internal frame, the amplifier is securely braced within the cabinet for long-term reliability.
The input stage features a new low-distortion design with an advanced safety limiter that preserves the input signal’s character at any level. EVOX J9 amplifier is designed in accordance with EN 62368-1 for maximum safety and feature a switch-mode power supply (SMPS) that combines high efficiency with minimal weight.

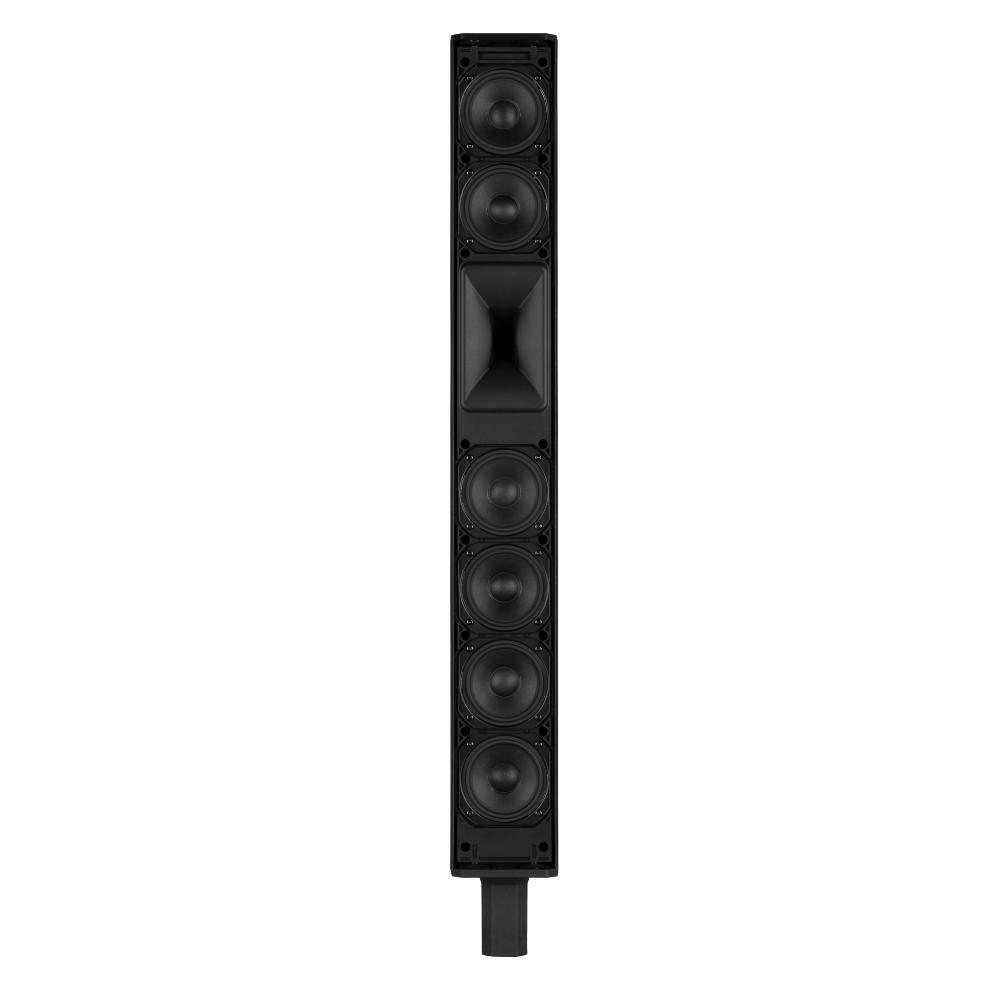

Neodymium compression driver (1.75” voice coil, Kapton dome) with a True Resistive Waveguide (TRW) for a resonance-free load and constant, 120° X 40° coverage.

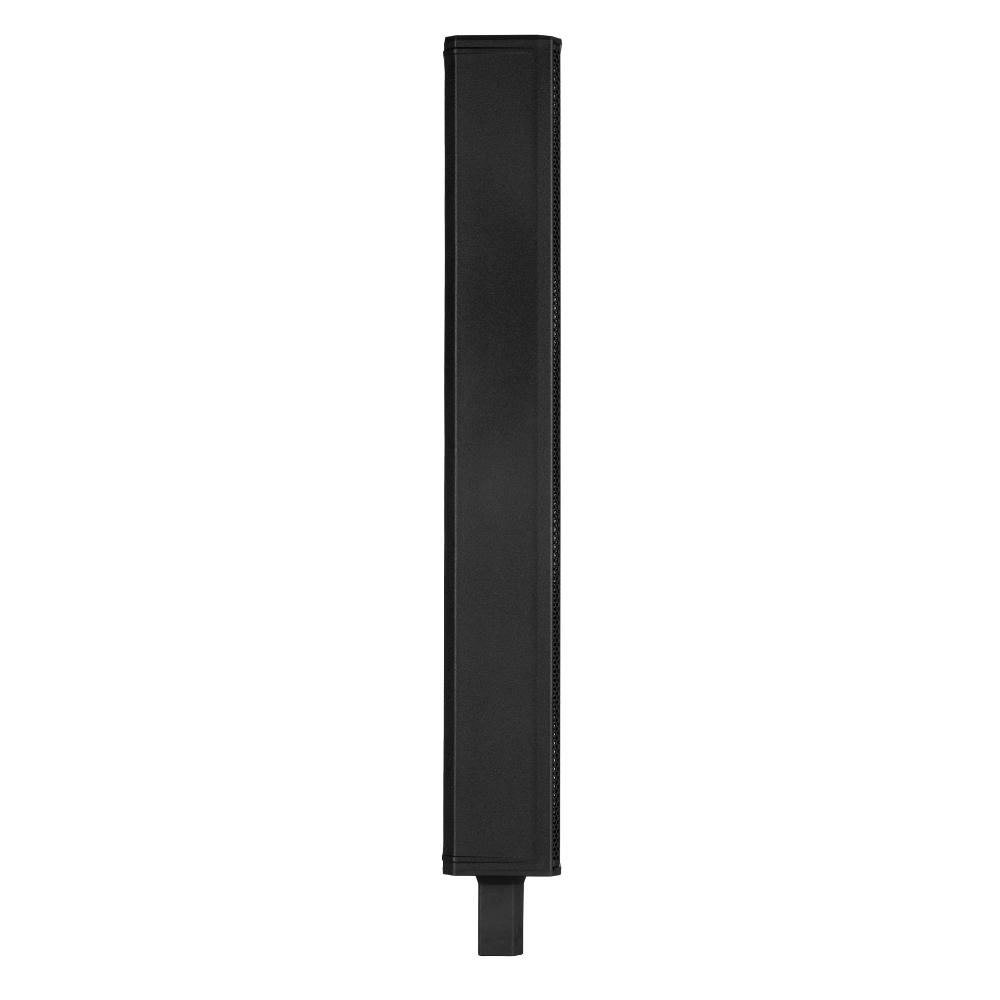

The forward radiation of the array of 6×3” neodymium drivers, combined with the centered waveguide, delivers a balanced point-source response.

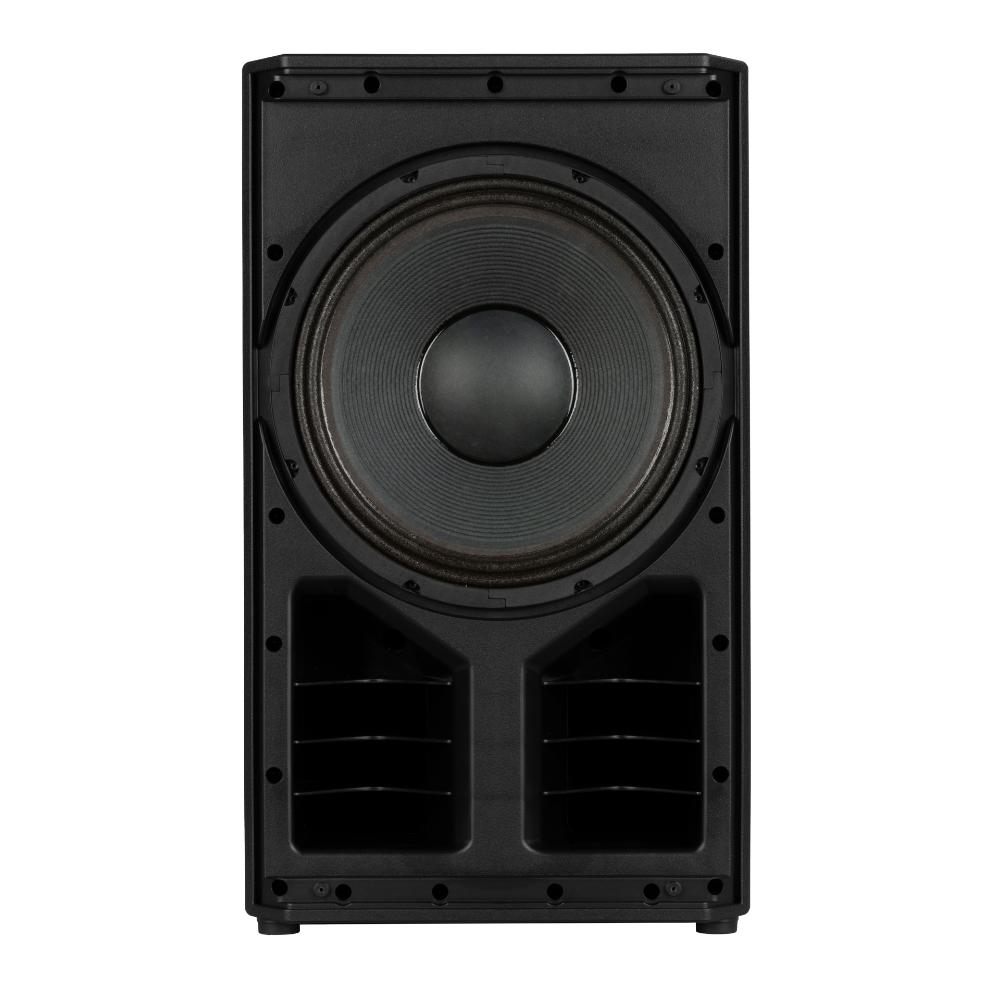

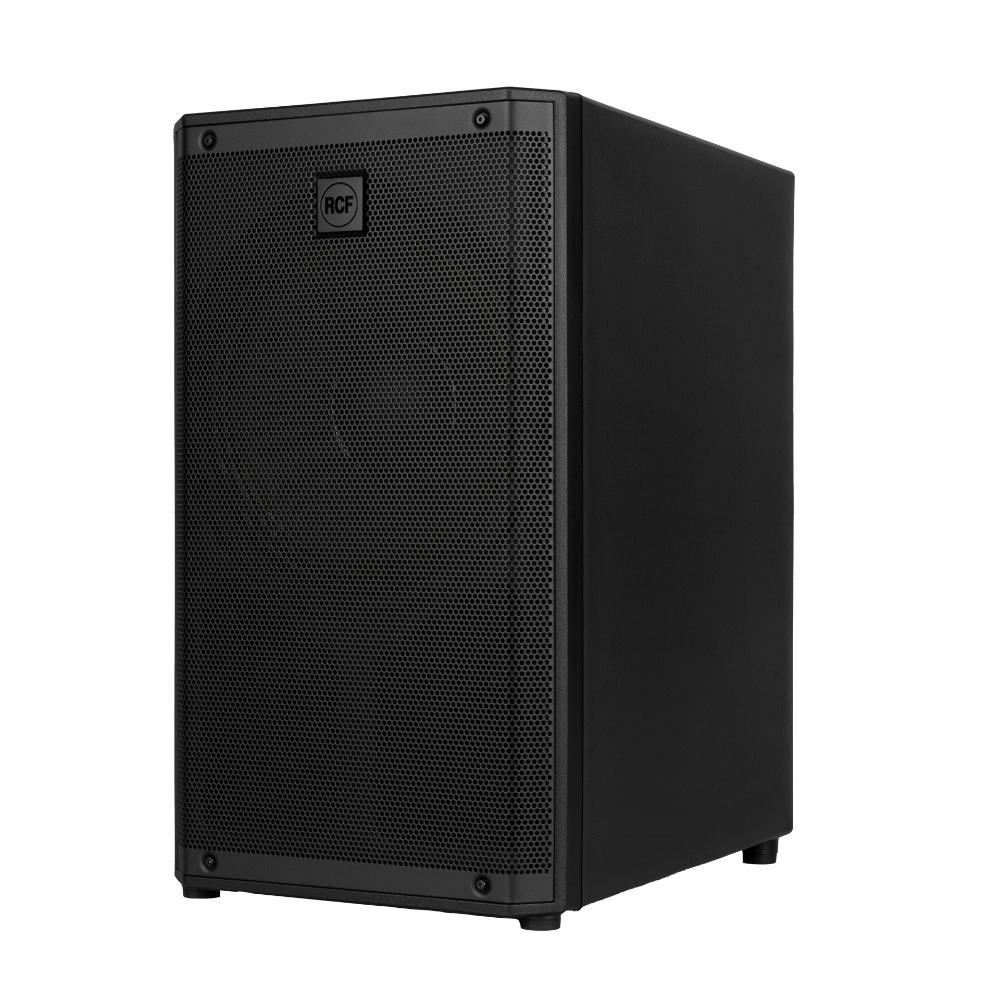

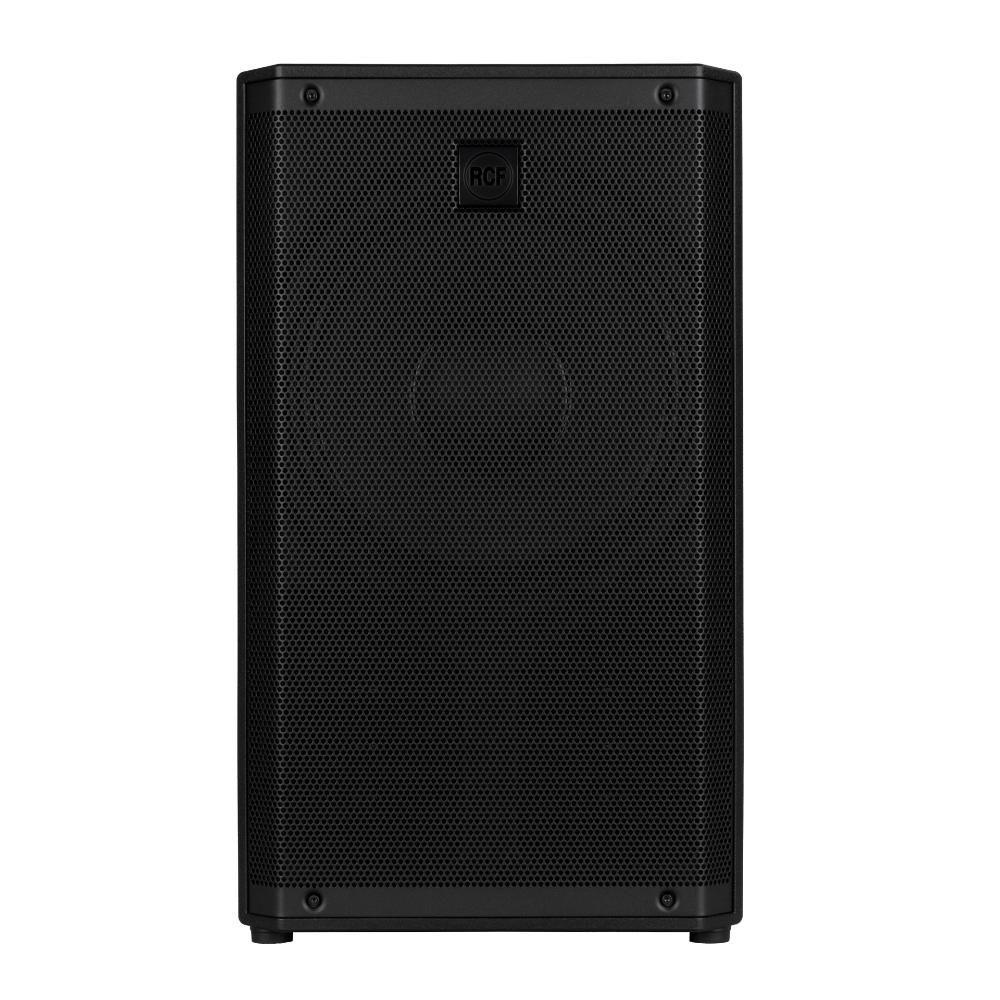

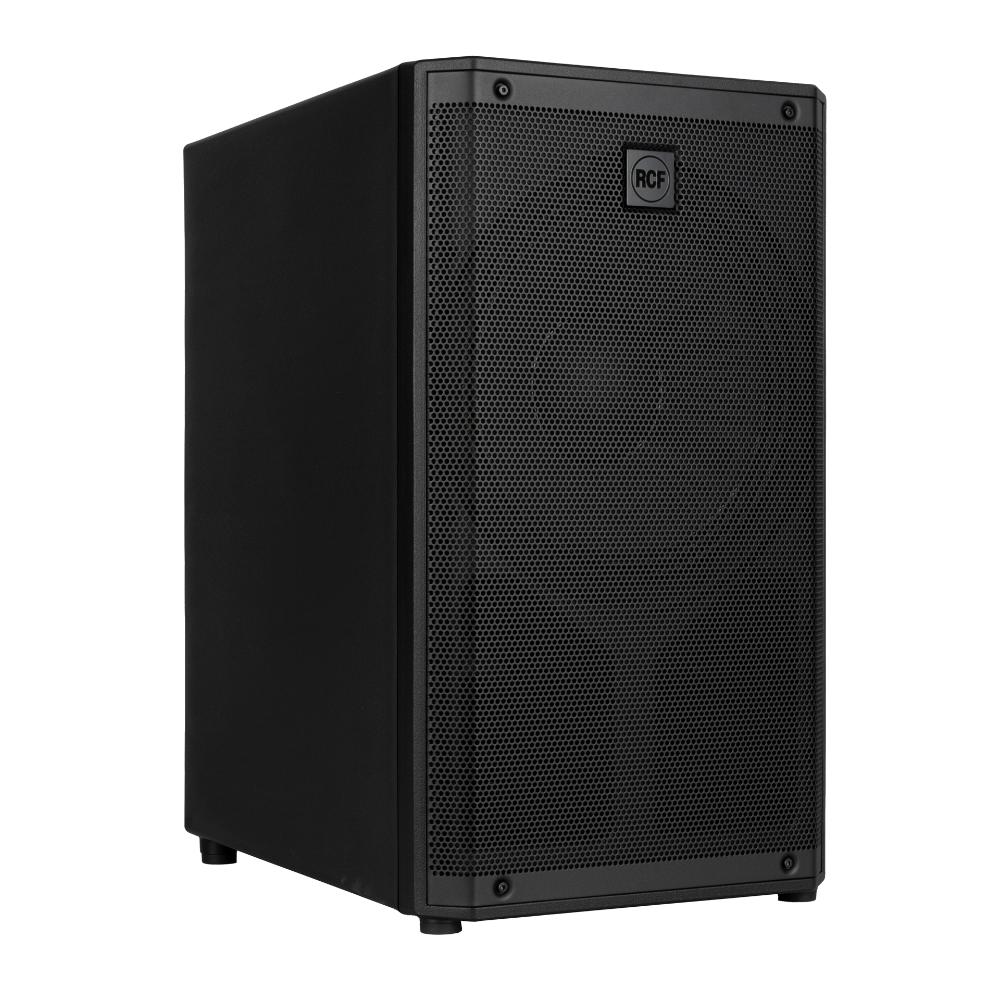

12” RCF transducer provides deep, controlled low frequencies, ideal for bass-heavy music and high-energy performances.
SUB AX ACE Presets for EVOX J
When extended, impactful low-end is required, simply add an RCF subwoofer. ACE-enabled models, starting from the SUB AX Series, include dedicated integration presets for EVOX systems, ensuring perfect tuning at the touch of a button. RCF’s Advanced Crossover Engine (ACE) precisely adjusts time delay and phase to optimize power and impact of the system.

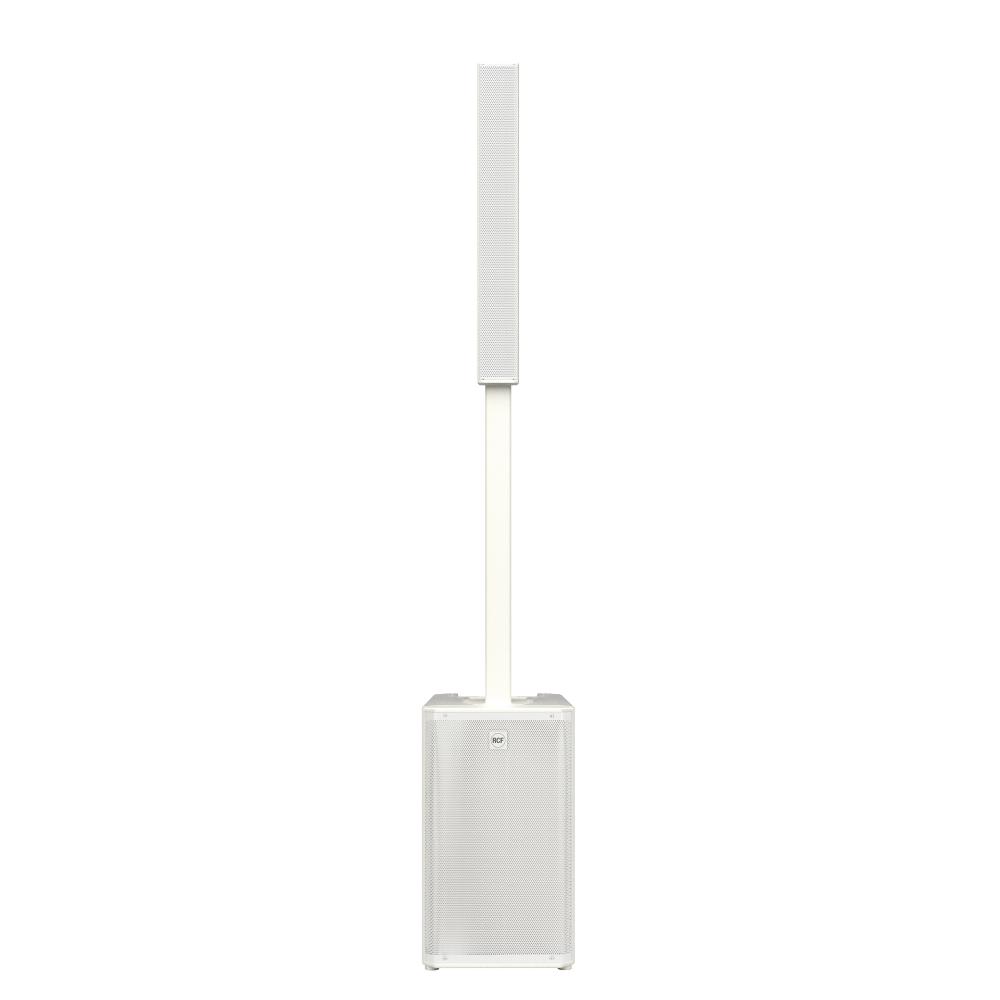

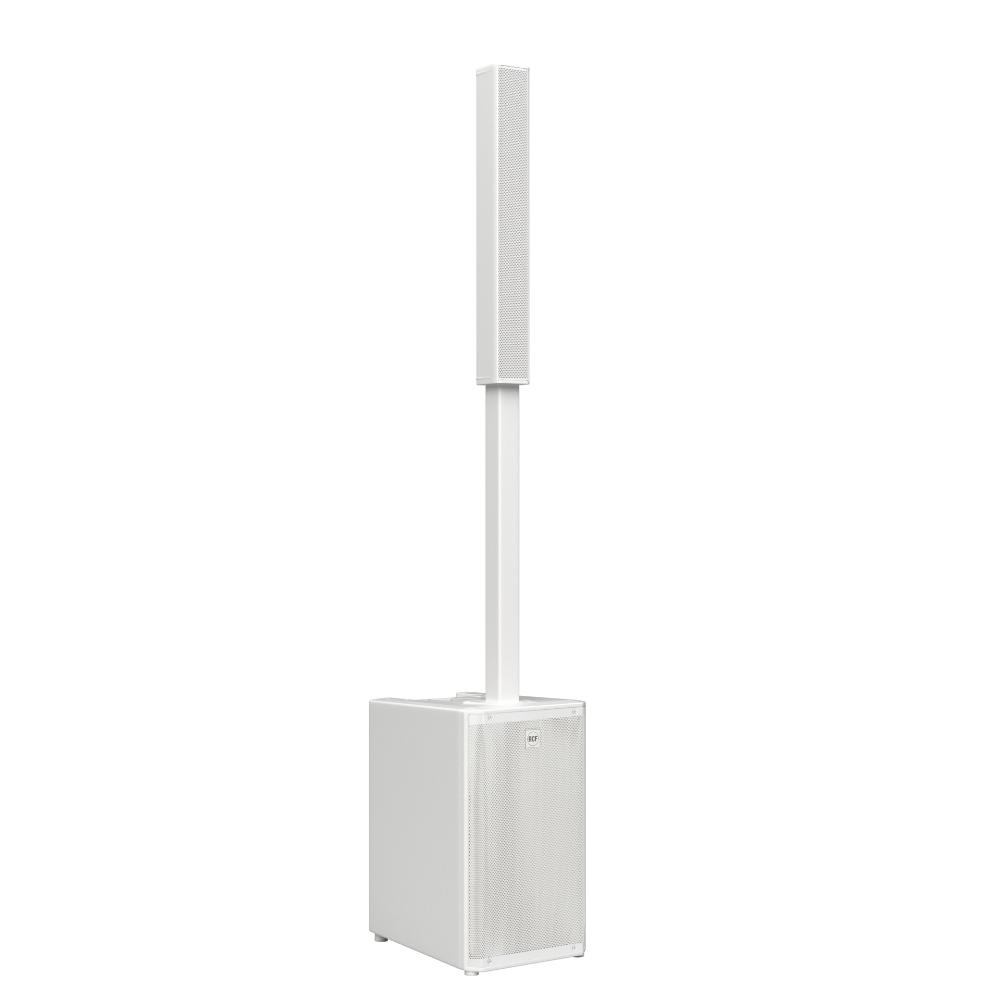

Variable Height Configuration

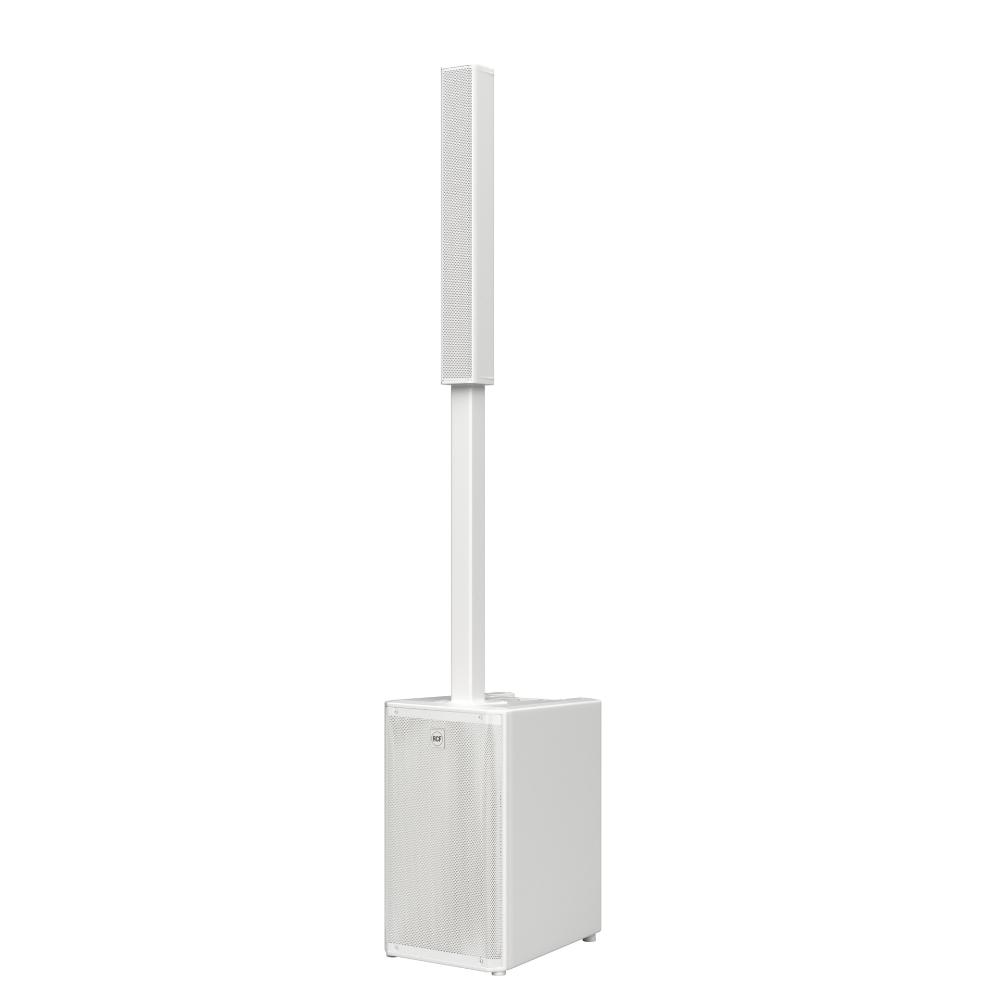

Black or white finishes, refined design, premium-grade materials, and ergonomic details that maximize portability while preserving the EVOX family’s sleek, familiar look. An included lightweight aluminum-alloy distance pole with integrated connections separates the top from the subwoofer; an optional half-size pole extension is available. The heights of J9 and JMIX9 are configurable, ranging from a zero-offset (column array attached to the bass enclosure) to a combination of full-length and half-length poles. (Note. half length pole not included, available as an accessory)
Acoustical specifications
Frequency Response: 40 Hz – 20000 Hz
Max SPL @ 1m: 130 dB
Horizontal coverage angle: 120°
Vertical coverage angle: 40°
Transducers
Compression Driver: 1 x 0.75” neo, 1.75” v.c
Fullrange: 6 x 3.0” neo, 1.0” v.c
Woofer: 1 x 12”, 2.5” v.c
Input/Output section
Input signal: bal/unbal
Input connectors: Combo XLR/Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Processor section
Crossover Frequencies: 200 Hz/1800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls
Volume, Presets: LINEAR/LIVE, CLUB, VOICE
Power section
Total Power: 2100 W Peak
High frequencies: 700 W Peak
Low frequencies: 1400 W Peak
Cooling: Convection
Connections: VDE
Standard compliance
Safety agency: CE compliant
Physical specifications
Cabinet/Case Material: PP Composite
Handles: 1 Top
Pole mount/Cap: Quick-fit socket
Grille: Steel
Color: Black, White – RAL 9003
Size / Weight
Height: 2080.1 mm / 81.89 inches
Width: 350 mm / 13.78 inches
Depth: 462.6 mm / 18.21 inches
Weight: 28.3 kg / 62.39 lbs
Shipping information
Package Height: 680 mm / 26.77 inches
Package Width: 490 mm / 19.29 inches
Package Depth: 460 mm / 18.11 inches
Package Weight: 32 kg / 70.55 lbs
