Description

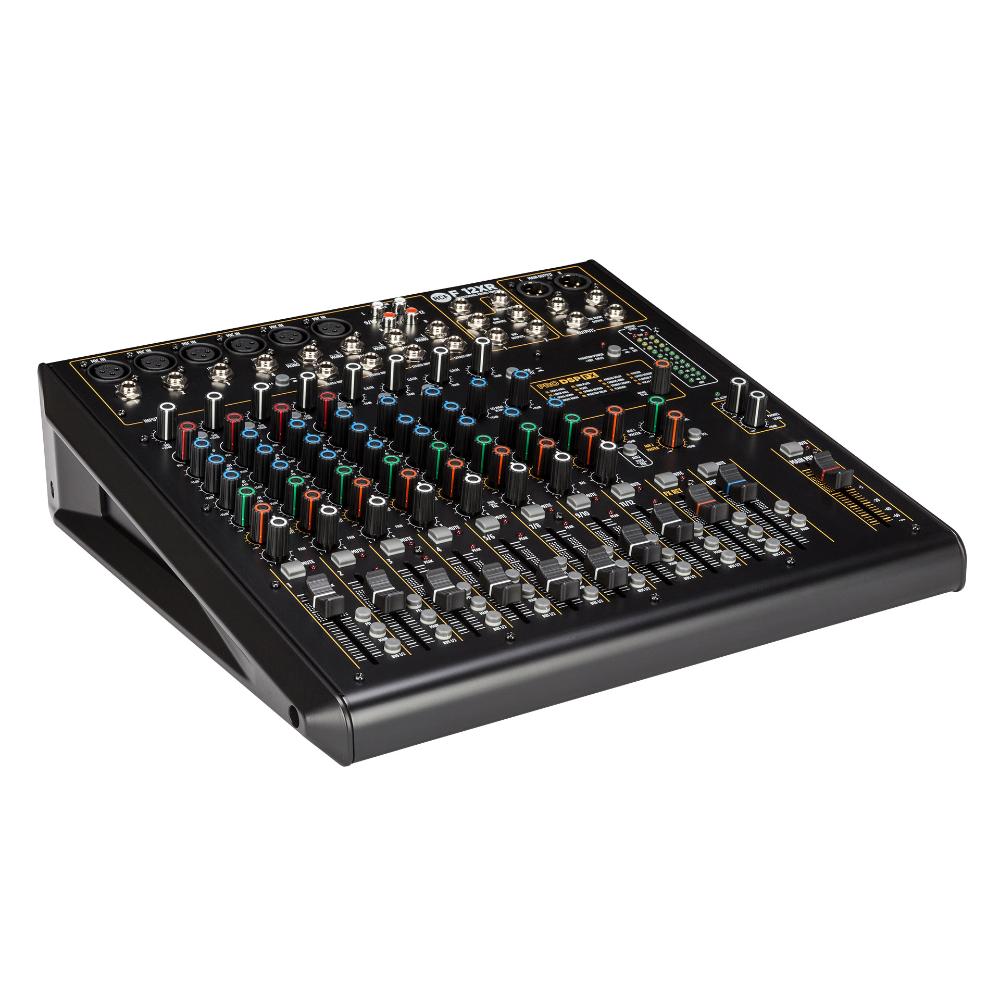

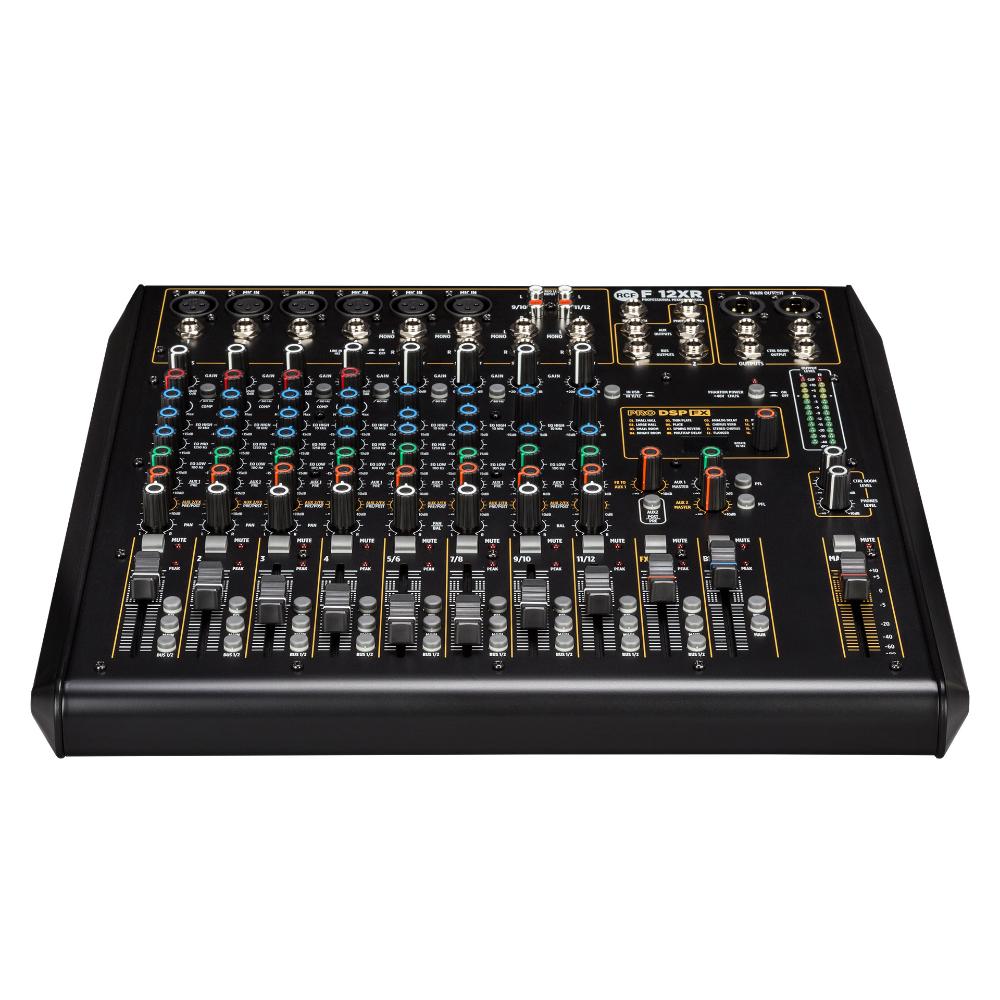

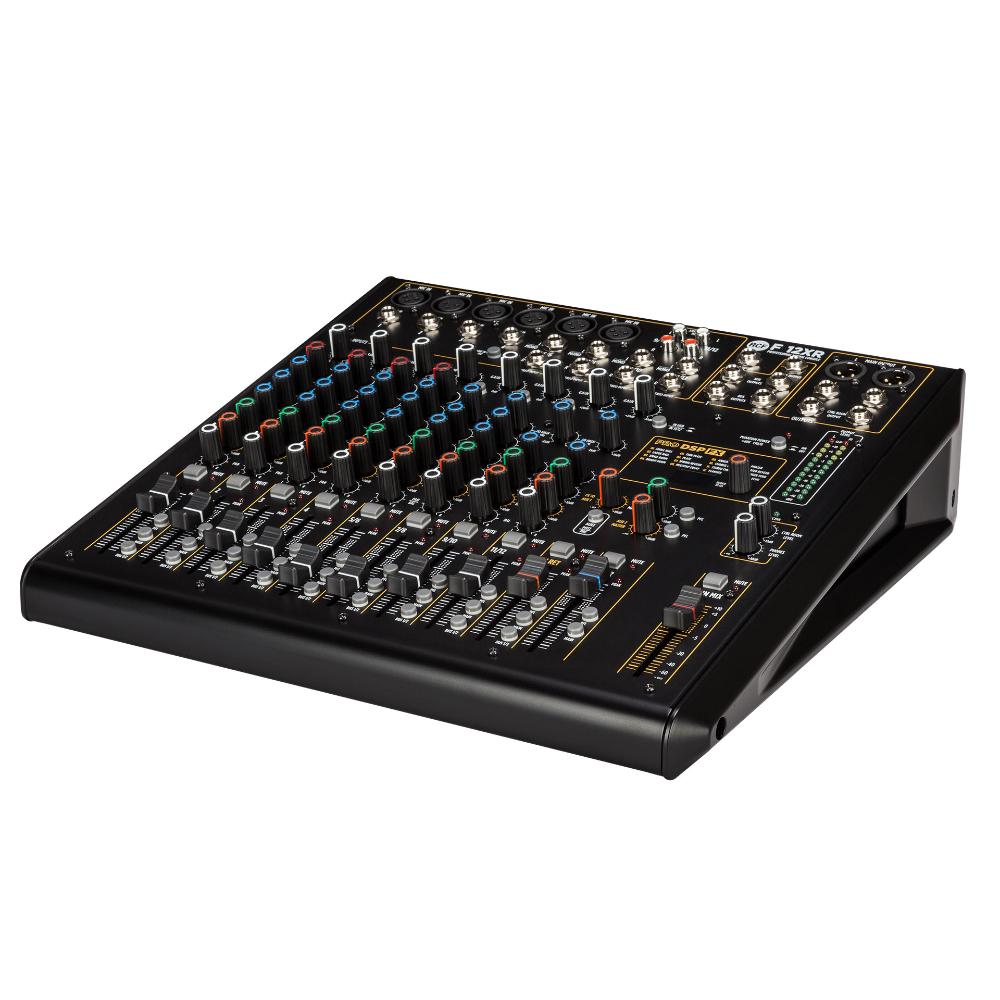

F 12XR

12-CHANNEL MIXING CONSOLE WITH MULTI-FX & RECORDING

  • Sturdy Metal Chassis
  • PRO DSP FX onboard with 16 presets
  • Stereo Recording and Playback via USB port
  • Balanced main output audio path from input to output

FEATURES

  • Sturdy Metal Chassis
  • PRO DSP FX onboard with 16 presets
  • Stereo Recording and Playback via USB port
  • Balanced main output audio path from input to output
  • 4 single control compressors
  • Mono channels provided with 3-band EQ. 2-band EQ on stereo channels.
  • Robust, compact and attractive design.
  • Designed and Engineered in Italy
  • Internal Universal Power Supply

RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in five formats from 6 to 24 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F- 10XR, F-12XR, F-16XR and F-24XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.

SPECIFICATIONS

ELECTRONIC SPECIFICATIONS
Frequency Response: 20 Hz ÷ 20 kHz
THD+N, 20dB gain, 0dBu out
<0,02% A-Weighted
INPUTS
Channels: 12
Mic: 6
Gain Range: 0 dB ÷ -50 dB
Input Noise Level: -124 dBu A-Weighted
Mic Inputs Impedance: 14 kohm
Low Cut: 80 Hz
Phantom Power +48V: Yes
Mono Line: 4
Gain Selection: 20 dB ÷ -30 dB
Line Input Impedance: 21 kohm
HI-Z Line Inputs: 1
HI-Z Line Inputs Impedance (Mohm): 1 Mohm
Stereo Line: 4
Gain Selection: 20 dB ÷ -30 dB
Stereo Line Input Impedance (kOhm)
15 kohm
Input connectors: XLR, Jack, RCA
OUTPUTS
Main MIX: 1
Control Room: Yes
FX Send: 1
AUX Send: 1
AUX Output: 2
Group Out: 1
Phones: 1
Output connectors: XLR, Jack
OUTPUTS SPECIFICATIONS
Main Out Level: 28 dBu
Aux Out Level: 28 dBu
Group Out Level: 28 dBu
Phones Out impedance (ohm): 150 ohm
COMPRESSORS
RCF Compressors: n° 4 Single Control Compressors on Channels 1 to 4
EQ
Input Channels EQ: 2 Shelving / 1 Generic
Description:
High: +/-15 dB @ 10 kHz Shelving
Mid: +/-15 dB @ 1,250 kHz Bell
Low: +/-15 dB @ 100 Hz Shelving
AUXILIARY SENDS
AUX: 1 PRE/POST
FX POST: 1
INTERNAL EFFECTS
Send Effects: 1
USB AUDIO
USB Audio Interface: Yes
Type: B
Play trk: 2
Rec trk: 2
Supported Sample Rate: 44.1, 48.0 kHz
OTHER FEATURES
Footswitch: Yes
ELECTRICAL SPECIFICATIONS
Power supply: Internal
Voltage requirements: 100 V – 240 V
Power consumption (MAX): 24 W
PHYSICAL SPECIFICATIONS
Cabinet/Case Material: Metal
Color: Black
SIZE
Height: 97 mm / 3.82 inches
Width: 373 mm / 14.69 inches
Depth: 355 mm / 13.98 inches
Weight: 4.5 kg / 9.92 lbs
