Sennheiser XSW1-ME2 E Lapel System with ME2-2 Omni Lapel Mic CH70

Description

XS Wireless 1 XSW 1-ME2-E Lavalier / Lapel System CH70

Inspire your audience. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 LAVALIER MIC SET is an easy to use all-in-one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone.

Product Features

• Compact bodypack transmitter, unobstrusive clip-on microphone
• Antenna-switching diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels

Product Specifications

General

• Microphone:  condenser
• THD, total harmonic distortion:  ≤ 0.9%
• Pick-up pattern:  cardioid
• Signal-to-noise ratio:  ≥ 103 dBA
• RF output power:  10 mW
• Switching bandwidth:  up to 24 MHz
• Operating time:  approx. 10 hrs
• Modulation:  wideband FM
• Output voltage:  ‘1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Housing:  rugged ABS housing
• Diversity reception:  antenna switching diversity via internal antennas
• Frequency:  8 frequency banks, each with up to 10 factory-preset channels
• Frequency range:
  • A: 548-572 MHz, GB: 606-630 MHz
  • B: 614-638 MHz, C: 766-790 MHz
  • D: 794-806 MHz
  • E: 821-832 MHz, 863-865 MHz
  • K: 925-937.5 MHz
• Sensitivity:  < 3 μV at 52 dB(A)rms S/N
• SPL for peak deviation:  130 dB
• Squelch:  adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
• Synchronization:  2.4 GHz, Low Power OQPSK (only active during synchronization)
• Input sensitivity:  1.5 mV / Pa
• Audio adjustment range:  45 dB, adjustable in 5-dB steps
• Line / Mic level:  20 dB, switchable
• Temperature Range:  operation: 0°C to +40°C, storage: –20°C to +70°C
• Receiver Principle:  double superheterodyne

Receivers

• Dimensions approx.:  200 x 42 x 127 mm
• Weight approx.:  340g
• Power supply:  12 V DC nom. / 300 mA
• AF frequency response:  50 to 16,000 Hz (–3 dB)

Transmitter

• Dimensions approx. :  71 x 96 x 28 mm
• Weight approx. :  95g
• Power supply:  2 AA size batteries, 1.5 V
• Adjustment Range Transmitter:  0 to -30 dB, adjustable in 10 dB steps

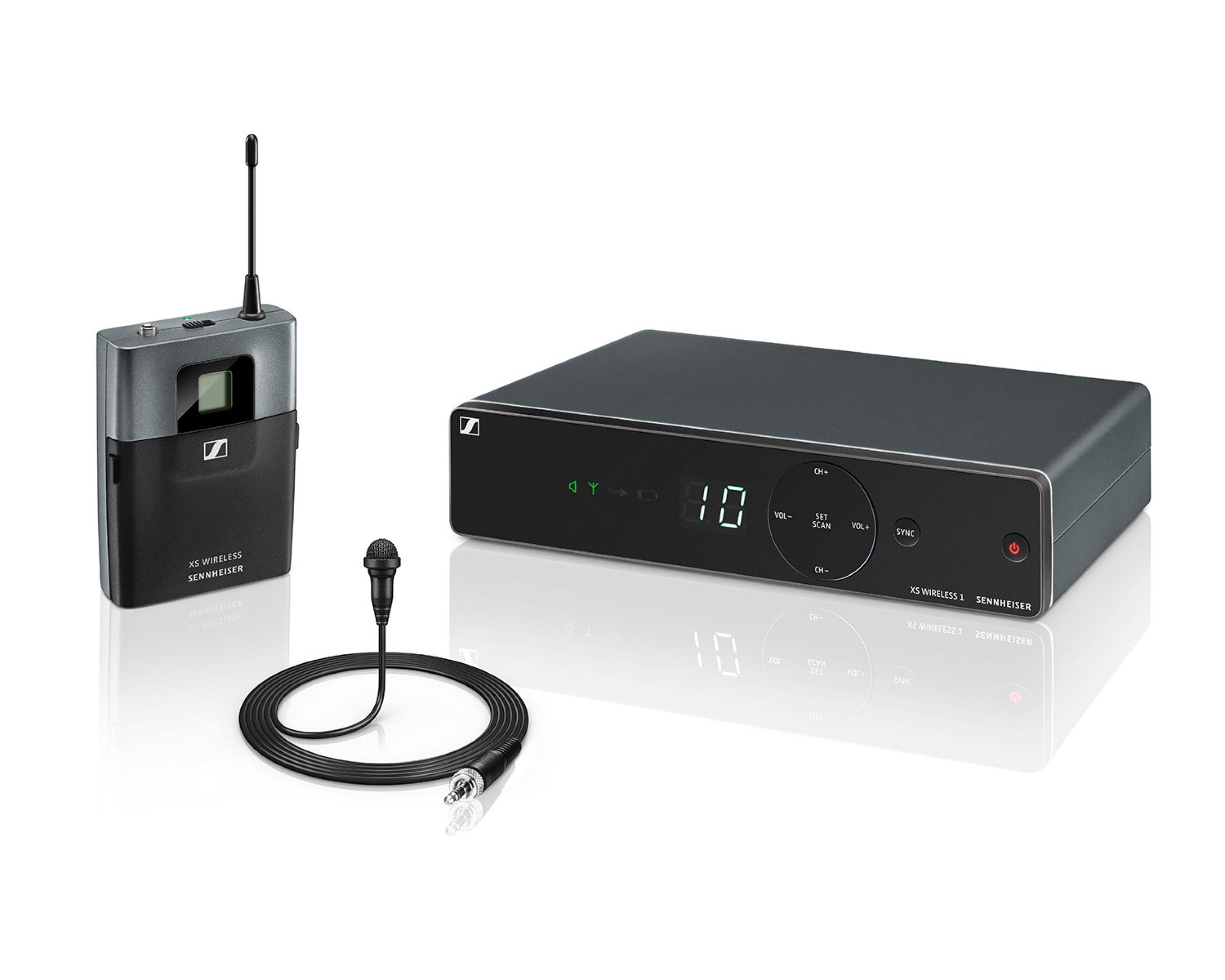

What’s in the Box?

• 1 receiver EM-XSW 1
• 1 lavalier microphone ME 2-2
• 1 bodypack transmitter SK-XSW
• 1 power supply NT 12-5 CW
• 2 AA batteries
