Description

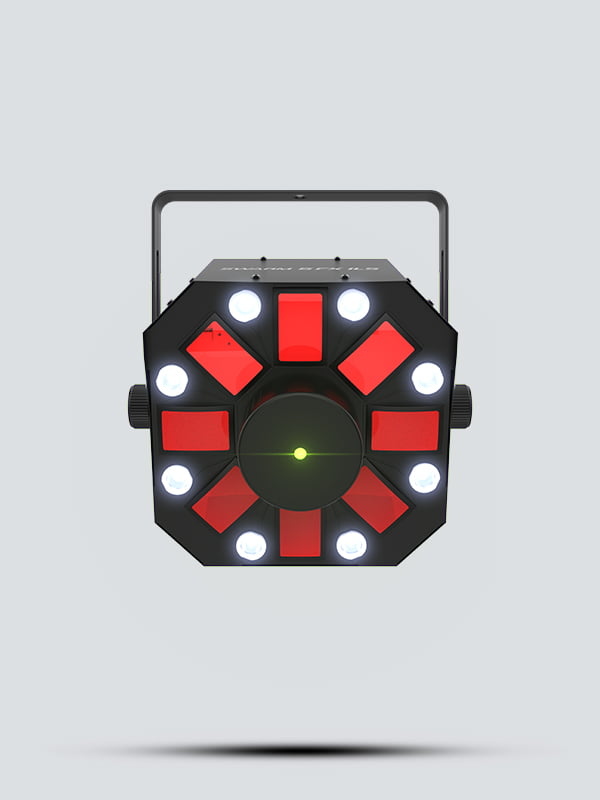

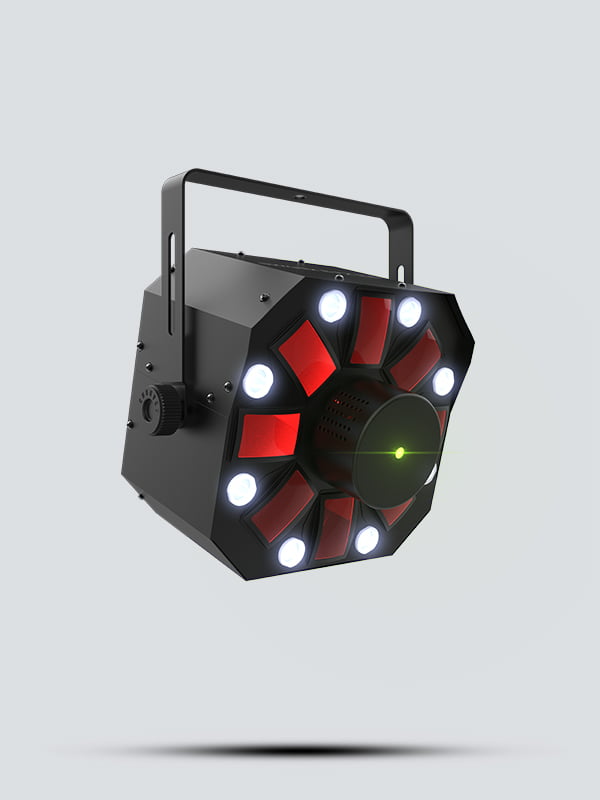

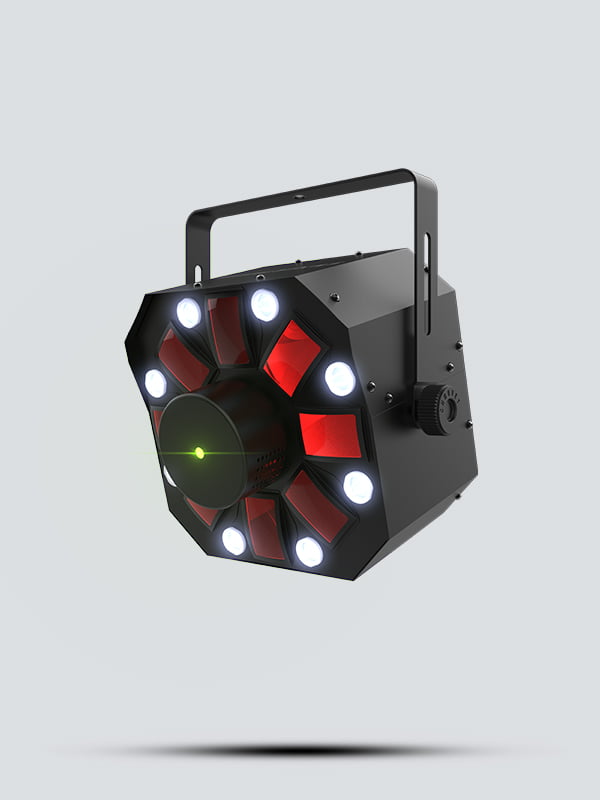

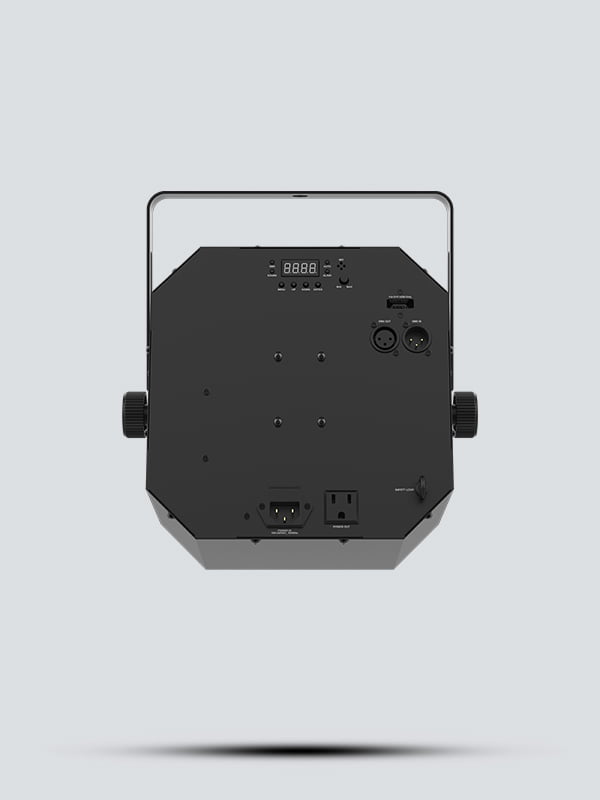

Swarm 5 FX ILS

Your parties deserve the excitement of Swarm 5 FX ILS. This 3-in-1 LED light that includes an RGBAW rotating derby, red/green laser, and white strobe effect and compatibility with the cutting edge Integrated Lighting System (ILS) that makes creating coordinated light shows across different fixture types easy. Swarm 5 FX ILS also features D-Fi USB compatibility for wireless Master/Slave or DMX control. Flexibility is even greater with automated and sound-activated programs, or Master/Slave and DMX modes and separate color and program control.

Highlights

  • 3-in-1 LED light that includes an RGBAW rotating derby, red/green laser, and white strobe effect
  • ILS compatibility for use in the ILS ecosystem
  • D-Fi USB compatibility for wireless Master/Slave or DMX control
  • Laser projects thousands of red and green laser beams
  • Operation allows for separate color and program control
  • Increase control options using automated and sound-activated programs, or Master/Slave and DMX modes
  • Save time running cables and extension cords by power linking multiple units
  • Fits best inside the CHS-40 VIP gear bag

Specifications

  • DMX Channels:9
  • DMX Connectors:3-pin XLR
  • Light Source:(Swarm): 5 LEDs (1 red, 1 green, 1 blue, 1 amber, 1 white) 3 W, (300 mA), 50,000 hours life expectancy
    (strobe): 8 LEDs (white) 1 W, (300 mA), 50,000 hours life expectancy
    (laser): 520 nm/30 mW (green) laser diode, 650 nm/100 mW (red) laser diode
  • Strobe Rate:0 to 20 Hz
  • Beam Angle:(strobe): 17°
  • Field Angle:(strobe): 35°
  • Coverage Angle:(laser): 100°
    (Swarm): 65°
  • Illuminance:(strobe): 823 lux @ 2 m
  • Power Linking:15 units @ 120 V; 26 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:62 W, 0.5 A @ 120 V, 60 Hz
    62 W, 0.3 A @ 230 V, 50 Hz
  • Weight:9.8 lb (4.5 kg)
  • Size:9.75 x 11.7 x 12.2 in (248 x 298 x 310 mm)
