Description

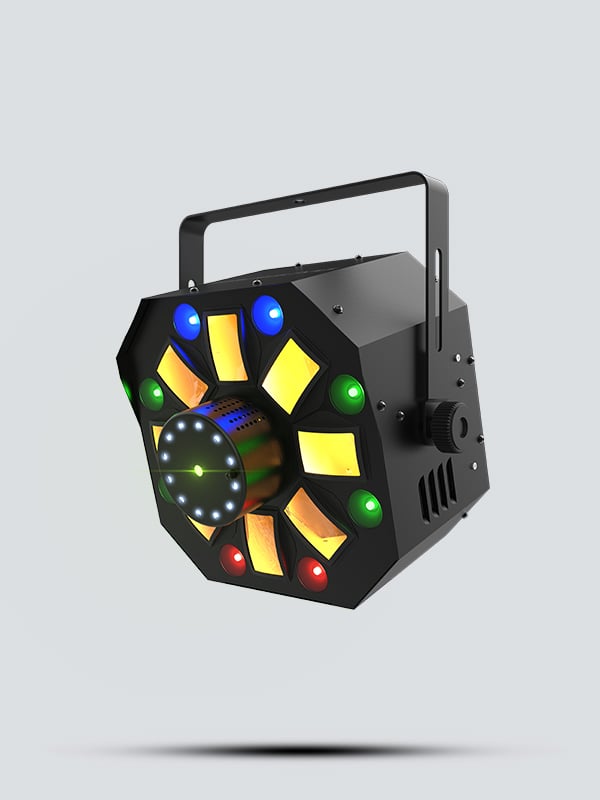

Swarm Wash FX ILS

Dynamic lighting thrills are at hand with Swarm Wash FX ILS, a 4-in-1 LED light that combines an RGBAW rotating derby, RGB+UV wash, red/green laser, and a ring of white SMD strobes. Imagine red and green laser beams projecting thousands of beams and built-in, eye-catching automatic and sound- activated programs that are easy to generate. It’s all the reality of Swarm Wash FX ILS. But the punch this powerful party light packs is its compatibility with ILS that makes creating coordinated light shows across different fixture types easy. Swarm Wash FX ILS also has D-Fi USB compatibility for wireless Master/Slave, or DMX control. Access built-in automated programs via IRC6 remote, Master/Slave or DMX.

Highlights

  • 4-in-1 LED light that combines an RGBAW rotating derby, RGB+UV wash, red/green laser, and a ring of white SMD strobes
  • ILS compatibility for use in the ILS ecosystem
  • D-Fi USB compatibility for wireless Master/Slave, or DMX control
  • Access built-in automated programs via IRC6 remote, Master/Slave or DMX
  • Red and green laser beams project thousands of beams for maximum coverage
  • Generate complex looks easily with built-in, eye-catching automatic and sound- activated programs
  • Save time running extension cords by power linking multiple unit
  • Fits best inside the CHS-40 VIP gear bag

Specifications

  • DMX Channels:2 or 18
  • DMX Connectors:3-pin XLR
  • Light Source:(Wash) 8 LEDs (quad-color RGB+UV) 1.5 W, (600 mA), 50,000 hours life expectancy
    (Strobe) 12 LEDs (white) 1 W, (300 mA), 50,000 hours life expectancy
    (Laser): 650 nm/100 mW (red) laser diode, 520 nm/30 mW (green) laser diode
  • Strobe Rate:0 to 20 Hz
  • Power Linking:11 units @ 120 V; 20 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:51 W, 0.7 A @ 120 V, 60 Hz
    50 W, 0.4 A @ 230 V, 50 Hz
  • Weight:9.5 lb (4.3 kg)
  • Size:13.1 x 13 x 9.4 in (335 x 332 x 241 mm)
  • Approvals:CE, FDA, RoHS, UKCA
  • Optional controllers: IRC-6
  • Coverage Angle: (laser) 82°
    (swarm): 65°
    (strobe): 71°
    (wash): 46°
  • Classified per EN/IEC 60825-1: 2014
  • Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 56, dated May 8, 2019

What’s Included

  • Swarm Wash FX ILS
  • Power cord
  • User Manual
